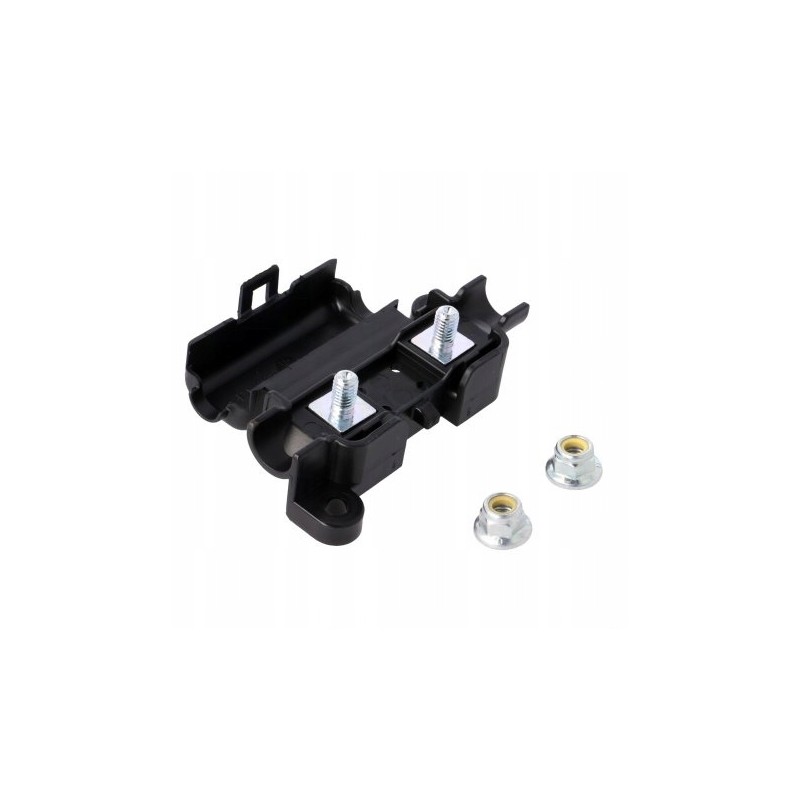

The MTA fuse holder is dedicated to MIDIVAL series fuses with power from 30A to 200A.
The fuse in photovoltaic installations is mounted on the positive pole between the regulator and the gel battery.
The MTA holder has 2 m5 screws. It is necessary to purchase ring connectors in the range M5 - M6
Type of fuse accessories: socket
Fuse size: 40 mm
Maximum current: 125A
Installation: screwed, pressed in
Terminals: M5 screws
Contact material: steel
Contact plating: tin-plated
Operating temperature: -40...125°C
Body material: PA66, polyamide
Body color: black
Number of tracks: 1
Flammability class: UL94V-2
Maximum voltage: 32V
Cable cross-section: 2.5...20mm2
