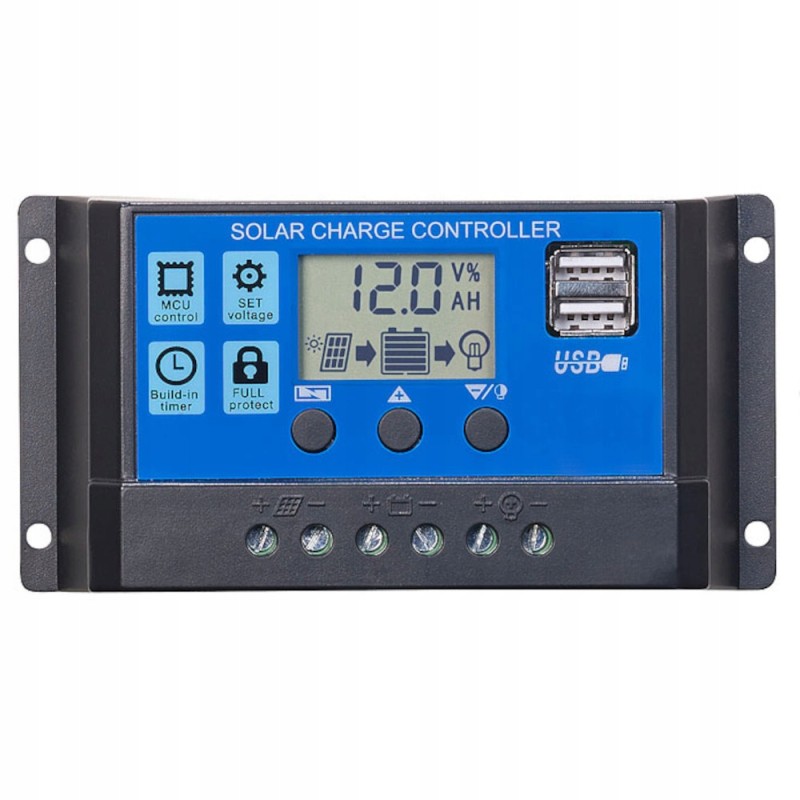

PWM charging regulator 10a 12v 24v 2xusb

PWM charging controller 10A 12V/24V 2xUSB* Product code: 30971

It is possible to turn on the connected receiver after sunset for a specific number of hours.

In addition, the regulator can be expanded with additional panels in the future, thanks to which we can obtain a larger amount of electricity.

The controller charges the batteries using the PWM method. It modulates the voltage range from 0 to 100%, which allows for quick and stable charging of the battery regardless of the weather and the condition of the solar system.

DOUBLE USB CONNECTOR

Regulator settings:

Turning on/off the receivers.

Twilight switch (turning on the receivers at a given time) time after sunset).

Regulator protection:

Solar battery short circuit.

Overload on the receiver side.

Reverse battery polarity.

Overheating protection.

Technical data **** Discharge protection: 11.1V / 22.2V

Load restoration point: 12.5V / 25V

Maximum input voltage (from panels): 48V

Waterproof class: IP30

Max. charging current (panel current): 10A

Max. load current: 10A

Operating voltage: 12V 24V DC

Own consumption: ‹6mA

Operating temperature: -20℃ to +60℃

Dimensions: 97 x 66 x 25mm (length/width/height)

Connectors: 2x USB

Charging compensation due to temperature: -30.0mV/1 degree C/2V
