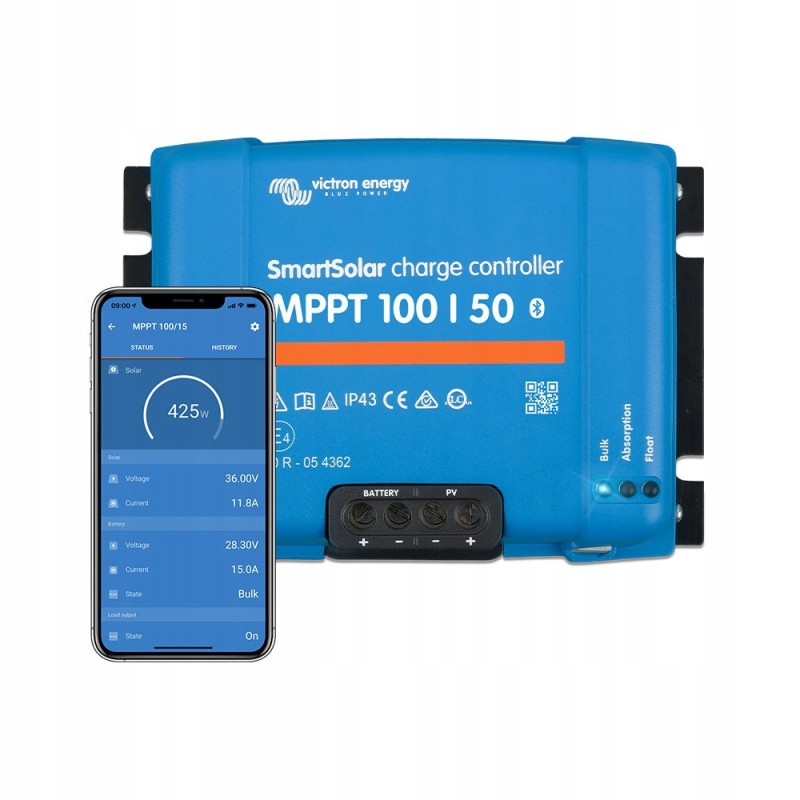

Smart 100v 50a bluetooth charging controller

Smart 100V/50A BlueTooth charging controller* Product code: ST-2461

Charging controller 100V 50A. Voltage 12 or 24V selected automatically. The BlueTooth interface allows programming and monitoring via smartphone.

Technical Data **** Battery voltage: 12/24 V (auto)

Rated charging current: 50 A

Nominal power PV, 12V: 700 W

Nominal power PV, 24V: 1400W

Maximum PV open circuit voltage: 100V

Max. PV short-circuit current: 60 A

Maximum efficiency: 98 %

Self-consumption: 12 V: 30 mA 24 V: 20 mA

Charging voltage absorption: Default setting: 14.4 V / 28.8 V (adjustable)

Float charging voltage: Default setting: 13.8V/27.6V (adjustable)

Charging algorithm: Multi-stage adaptive

Temperature compensation: -16 mV/°C or -32 mV/°C

Protection: Reverse PV polarity Output short circuit Over temperature

Operating temperature: -30 to +60 °C (full rated power up to 40 °C)

Temperature compensation: -16 mV / °C or -32 mV / °C

Humidity: 95%, non-condensing

Color: Blue (RAL 5012)

Power terminals: 16 mm² / AWG6

Protection category: IP43 (electronic components), IP22 (connection area)

Weight: 1.3 kg

Dimensions (hxwxd): 130 x 186 x 70 mm

Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
