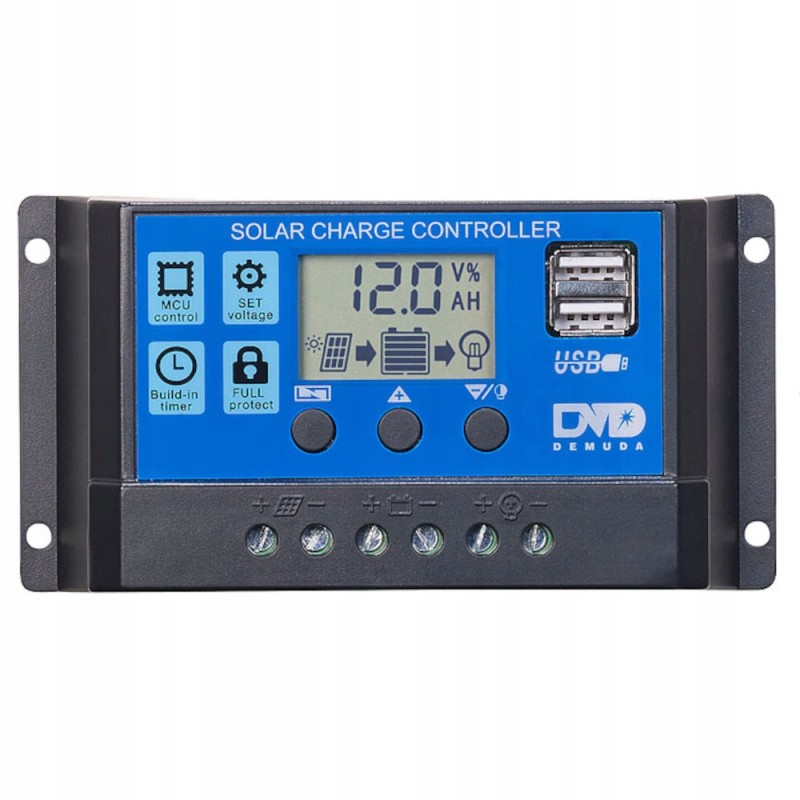

PWM solar controller regulator 30a 12v 24v

PWM charging controller 30A 12V/24V 2xUSB* Product code: 31830

The regulator has a programmable twilight sensor function.

It is possible to turn on the connected receiver after sunset for a specific number of hours.

In addition, the regulator can be expanded with additional panels in the future, thanks to so we can obtain more electricity.

The controller charges the batteries using the PWM method. It modulates the voltage range from 0 to 100%, which allows for quick and stable charging of the battery regardless of the weather and the condition of the solar system.

DOUBLE USB CONNECTOR

Regulator settings:

Turning on/off the receivers.

Twilight switch (turning on the receivers at a given time) time after sunset).

Programmable up to 15 hours.

Regulator protections:

Solar battery short circuit.

Overload on the receiver side.

Reverse battery polarity.

Overheating protection.

Technical data **** Protection before discharge: 11.1V / 22.2V

Load restoration point: 12.5V / 25V

Maximum input voltage (from panels): 48V

Waterproof class: IP30

Max. charging current (panel current): 30A

Max. load current: 30A

Operating voltage: 12V 24V DC

Own consumption: ‹6mA

Operating temperature: -20℃ to +60℃

Dimensions: 97 x 66 x 25mm (length/width/height)

Connectors: 2x USB

Charging compensation due to temperature: -30.0mV/1 degree C/2V
