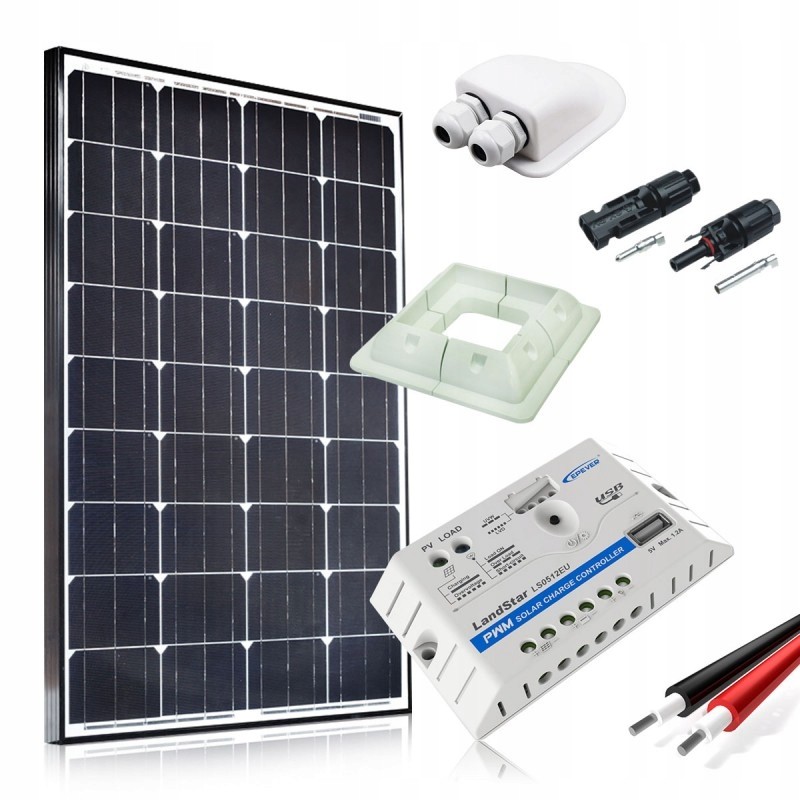

Solar kit for a camper, solar camper 100w

Power supply set for a camper, caravan: Solar panel 100W, dimensions: 998x670x35mm - 1 pc

Serial connector - 1 set

EPEVER LS1024EU 10A regulator with USB - 1 pc

Mounting corners for the camper roof - 1 set (4 pcs)

Roof grommet for electrical cables - 1 pc

Solar copper cable 1x2.5mm2 (5m red cable + 5m black cable)

Advantages:

Energy yield 800Wh*

Monocrystalline cells

High quality of workmanship

Solar battery resistant to weather conditions

Easy assembly

Panel: Model: 100W

Cells: monocrystalline

Peak power [W]: 100

Power voltage Max: Vmp [V]: 18.29

Max Current: Imp [A]: 5.47

Open-circuit voltage Voc [V]: 22.8

Short-circuit current: Isc [A]: 5.85

Length [mm]: 998

Width [mm]: 670

Depth [mm]: 35

Weight [kg]: 8

Terminal: MC4

Charge controller: Nominal system voltage: 12/24VDC

Max. PV circuit voltage: 50V

Rated charging current: 10A

Rated discharge current: 10A

Battery input voltage range: 8~32V

Low Voltage Disconnect Voltage: 11.1V

Own power consumption: ?5mA (12V), ?7mA (24V)

USB output port: 5VDC/1.2A

External dimensions [mm]: 120x67x21

Weight [kg]: 0.10

Terminal: 12AWG /4mm2

Mounting elements: Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 4

Height: 64mm

Width: 150mm

Length: 150mm
