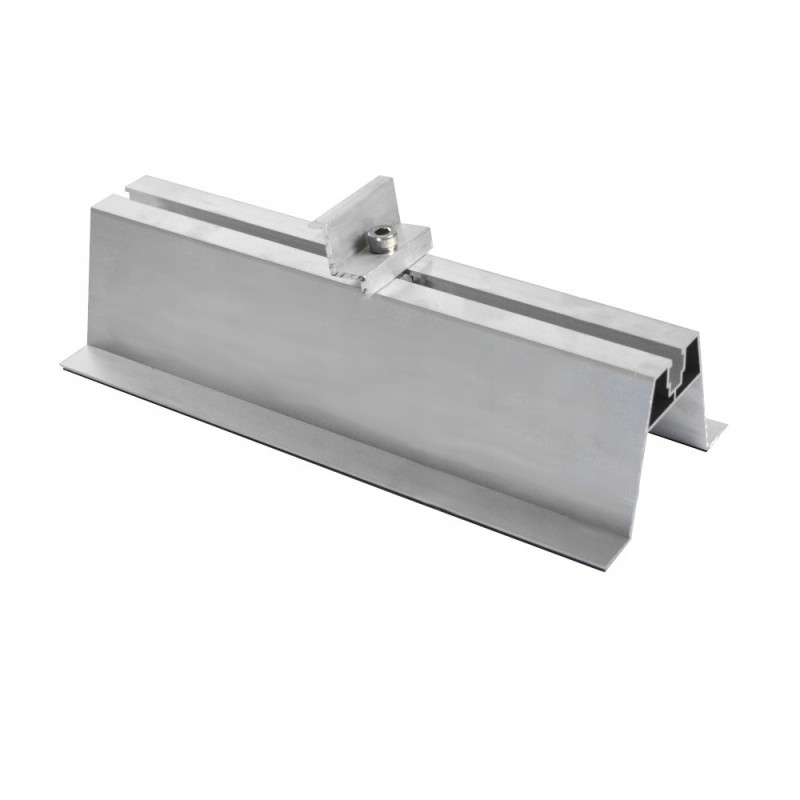

Trapezoidal handles, solar panel set

Trapezoidal holder for solar panels set * Product code: 36581

Set of trapezoidal holders for solar panels with a clamp - an ideal solution for anyone who plans to install panels on a sloping and flat roof. The set includes a set of trapezoidal handles, the necessary clamp, an Allen key and a keyway. Made of high-quality aluminum, they guarantee durability and solid assembly. The universal shape makes them fit all types of solar panels with a 3 cm and 3.5 cm thick frame. Regardless of whether you plan installation on a sloping or flat roof, these holders will meet your expectations.

The set includes:* 1x Trapezoidal holder for solar panels 30 cm

* 1x Aluminum clamp 30mm

* 1x Steel Allen screw M8x25

* 1x Aluminum sliding groove with M8 ball

Technical Data **** Dimensions: 300x70x114

Upper channel: M8/DIN 934A2 nut

Lower channel: Self-drilling screw with head 6.0x25 BI-METAL

Trapezoidal holder for solar panels 30 cm Dimensions: 300x70x114

Upper channel: M8/DIN 934A2 nut

Lower channel: Self-drilling screw with head 6.0x25 BI-METAL

Aluminum clamp 30mm Material: Aluminum

Dimensions: 28.6x30x2.8

Thickness: 2.8 mm

Mounting: M10 screw DIN 912 A2

Steel Allen screw M8x25 Dimensions: M8x25 mm

Application: Connection of a PV profile with a clamp

Aluminum sliding groove with ball M8 Dimensions: M8

Application: PV profile
