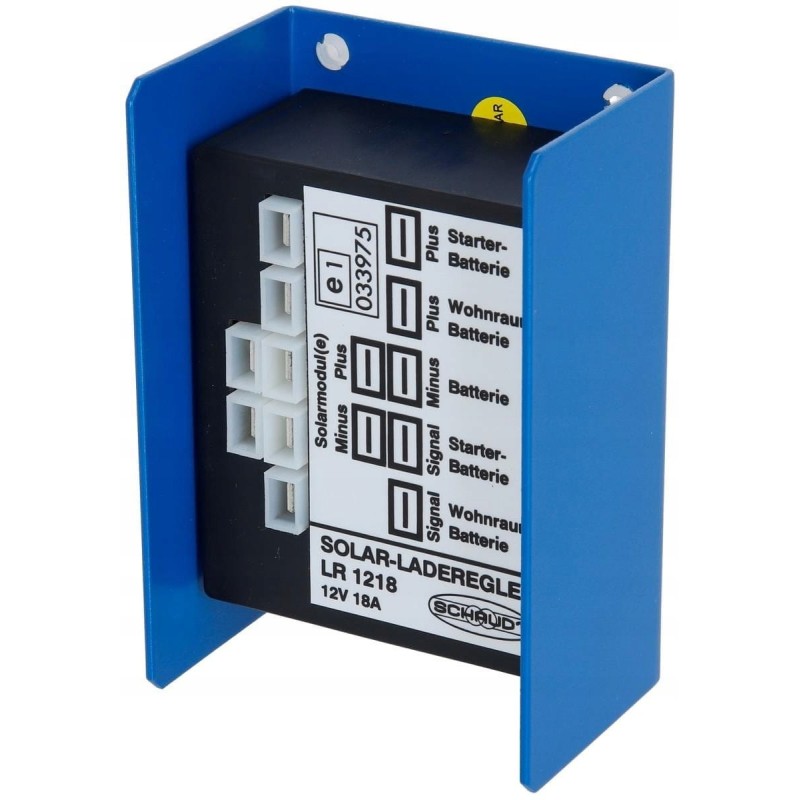

Schaudt LR 1218 hymer ebl solar controller

Solar controller Schaudt LR 1218 Hymer EBL Solar panel charging controller Schaudt LR 1218 Hymer EBL The solar charge controller LR 1218 limits and regulates the charging voltage from solar modules. Provides gentle charging of one or two batteries. The integrated isolating diode prevents discharge when the charging voltage is insufficient (e.g. in the dark).

max. total current: 18 A

Suitable for 12V lead-acid or lead-gel batteries

Final charging voltage for both batteries 14.2 V, characteristic: IU

Open circuit voltage 25 V

The LR 1218 allows you to simultaneously charge the starter battery and the camper battery from the solar panel via a solar regulator.

Charging voltage 14.2 V, rated current max. 18 A, with connection cables for stand-alone mode or connection to Schaudt systems with integrated solar panel, included. Connection

material and fuses (2 x 20A), (1 x 15A) with holders.

6 x blue flat push-in contacts and screws 1 x ebl connection cable for caravan battery charging current

1 x EBL adapter cable for charging current of the starter battery 1 x ebl to battery connection cable for charging currents

1 x ebl connecting cable for display charging current signals

Dimensions: length 110 x width 75 x height 56 mm, weight 150 g.

Producer: Schaudt
