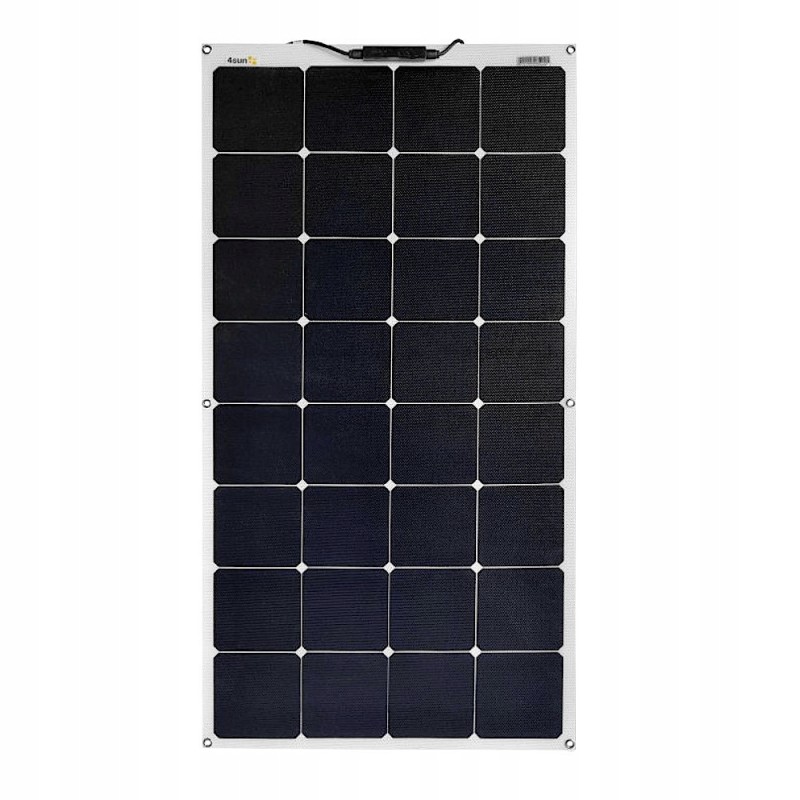

Solar panel solar battery 120w 12 flexible

Prestige 120W flexible panel* Product code: 4S-2778

PRESTIGE 120W FLEXIBLE PANEL is produced using a new and efficient technology from monocrystalline cells from the renowned Sun Power company. It is covered with an ETFE layer, which absorbs light to a greater extent and significantly increases the efficiency of the entire module. As a thin module, it can be mounted on a surface with a slight curvature.

Technical Data **** Cells: SunPower, Monocrystalline

Peak power [W]: 120W

Power tolerance [%]: + 3%

Cell efficiency ( %): 22.60%

Number of cells: 32(4X8)

Power voltage Vmp [V]: 19.50

Max current: Imp [A]: 6.15

No-load voltage Voc [V]: 23.40

Short-circuit current: Isc [A]: 6.77

Maximum system voltage: 600VDC (IEC)

Dimension: 1060x540x3mm

Weight [kg]: 1.7 KG

Terminal: MC4
