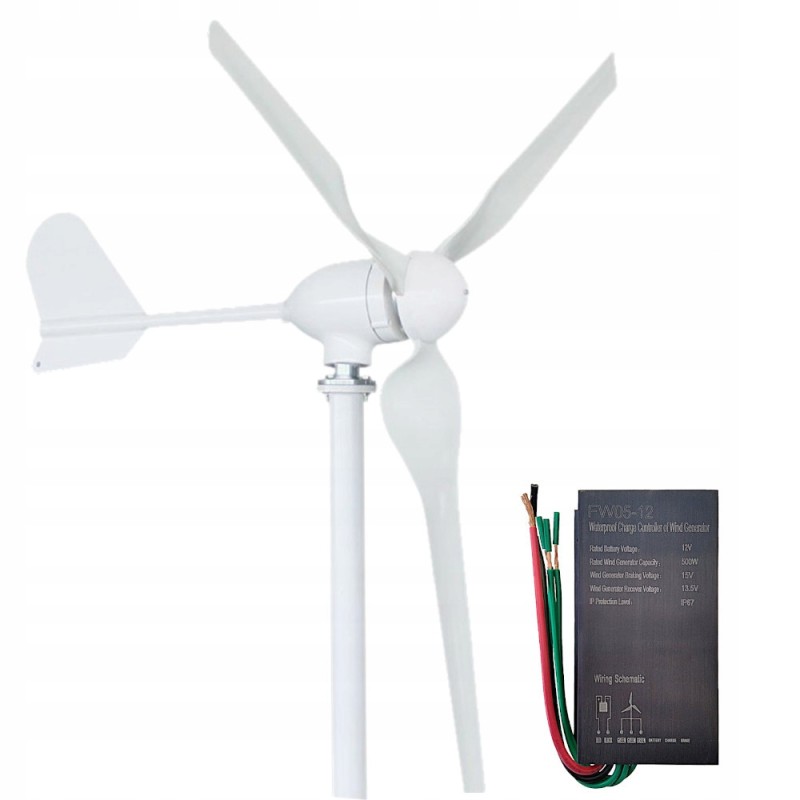

Wind generator wind turbine 500w 12v

FW 500W 12V wind turbineProduct code: 31846

500W 12V wind turbine with low starting speed, has a high level of wind energy and optimized aerodynamic shape and structure of the blades, which increase the use of wind and annual energy production.

The set does not include a mast.

The set includes:* 1x Wind turbine 500W 12V

* 1x Wind regulator 12V 500W

Wind turbine 500W 12V Rated power: 500W

Maximum power: 530W

Rated voltage: 12V AC

Starting speed: 2.5 m/s

Rated wind speed: 10 m/s

Limiting wind speed: 45 m/s

Rotor diameter: 170 cm

Net weight: 15 kg

Number of blades: 3

Mast diameter: 4 - 5.5 cm

Blade material: nylon

Generator housing: aluminum alloy

Operating temperature: -40°C - 80°C

12V 500W wind controller Maximum power supported by the controller:: 500W

Battery rated voltage:: 12V

Overcharge protection:: 15V

Battery cut-off voltage:: 13.5V

Protection:: IP67

Static power consumption:: ‹15mA

Weight:: 350g

Three diodes:: battery / charging / brake

Five wires:: 2x battery + 3x turbine

Turbine power depending on wind force

Wind power is of great importance when producing electricity from wind turbines. Select the windiest places for wind generators.

3 m/s (10 km/h): 10% of power

5 m/s (18 km/h): 20% of power

7 m/s (25 km/ h): 60% power

11 m/s (40 km/h): 100% power
