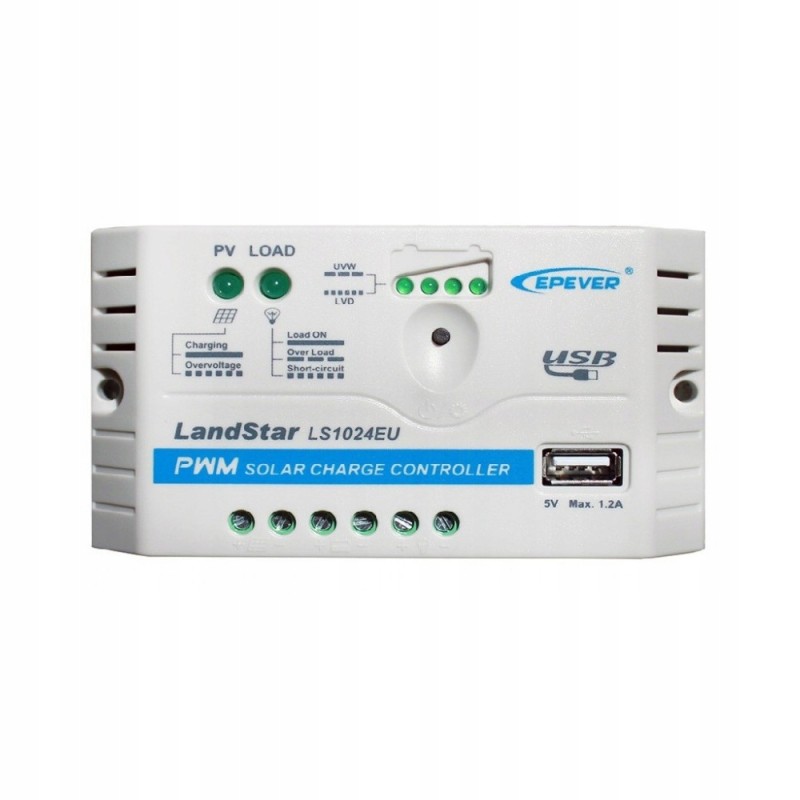

Charging controller ls1024eu 10a 12v 24v usb

LS1024EU 10A USB Charging Regulator* Product code: 4S-2681

The LS1024EU Charging Regulator is a device that was developed in accordance with the latest available technology and has many unique features, such as:

Easy and quick change of battery type selection using a button.

USB output allowing you to charge a smartphone, tablet, etc.

The Charging Controller automatically adjusts to the system voltage of 12V or 24V.

Clear and readable display of the charge status.

Four battery charge levels.

Automatic adjustment to the ambient temperature .

Disconnecting the receiver when the voltage drops significantly.

8o 4 mm2 clamp diameter for connection cables.

Comprehensive electronic protection against: overvoltages, short circuits, reverse polarity, overload, etc.

The device is dedicated to work with gel batteries, acid batteries and AGM.

Technical Data **** Nominal system voltage: 12/24VDC

Max. PV circuit voltage: 50V

Rated charging current: 10A

Rated discharge current: 10A

Battery input voltage range: 8~32V

Low voltage disconnect voltage: 11.1V

Own power consumption: ›5mA(12V) , ›7mA (24V)

USB output port: 5VDC/1.2A

Battery types: Acid, AGM, Gel

Housing: IP20

Mounting hole size: Φ.4.5

Terminal: 12AWG /4mm2

Temperature operation: -35℃～+55℃

Humidity: ›95% NC

Dimensions: 12 x 6.7 x 2.1 cm

Weight: 0.10 kg
