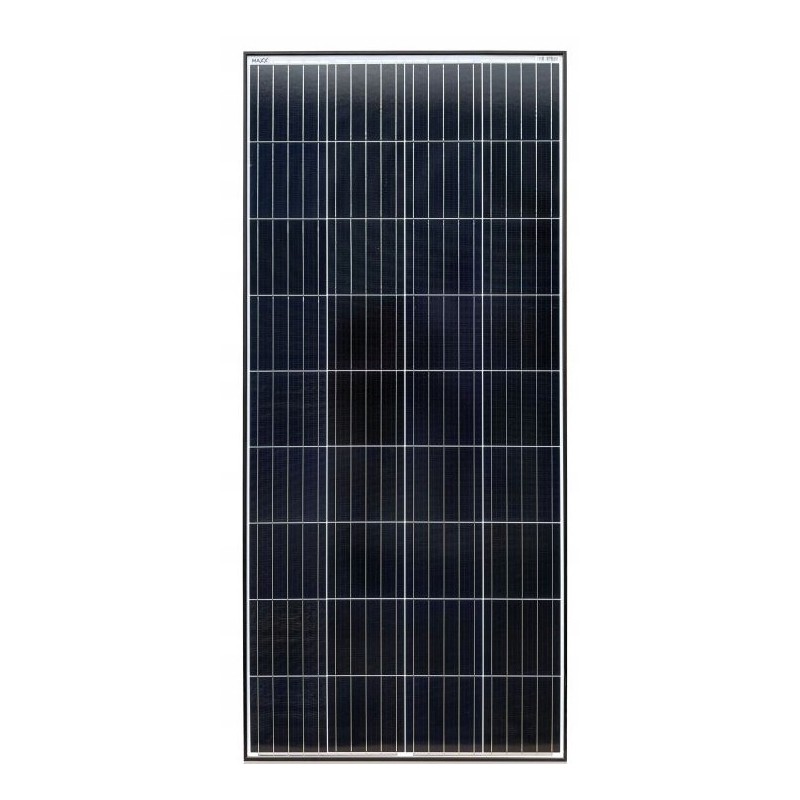

Solar panel mono 200w camper

Monocrystalline solar panel 200W SOLAR PANEL 200W is a module with very high power, which allows for long-term operation in a wide range of temperatures and various weather conditions. Its technical parameters enable it to function as a source of power and charging for large batteries, even with capacities of 100-150 Ah. Monocrystalline panels are made of silicon, which has an ordered structure, which makes it more efficient and effective. This means that the same energy can be produced in a smaller area. Thanks to this, monocrystalline modules have slightly higher efficiency than polycrystalline panels. For example, polycrystalline panels have an efficiency of around 16%, and monocrystalline panels are around 20%. Due to these properties, they are also slightly more expensive than polycrystalline panels.

The set is used in:

campers

caravans

Dutch houses

yachts

Technical data: Cells: Monocrystalline

Peak power [W]: 200W

Power tolerance [%]: +3

Max power voltage: Vmp [V]: 20.7

Max current: Imp [A]: 9.66

No-load voltage Voc [V]: 24.84

Short circuit current: Isc [A]: 10.63

Operating temperature range [c°]: -40 - +85

Length [mm]: 1480

Width [mm]: 670

Depth [mm]: 35

Weight [kg]: 10.9

Terminal: MC4

Frame: Anodized aluminum - Black

Glass: Highly transparent tempered glass, thickness 3.2mm

Included: Monocrystalline panel 200W

Serial connector MC4
