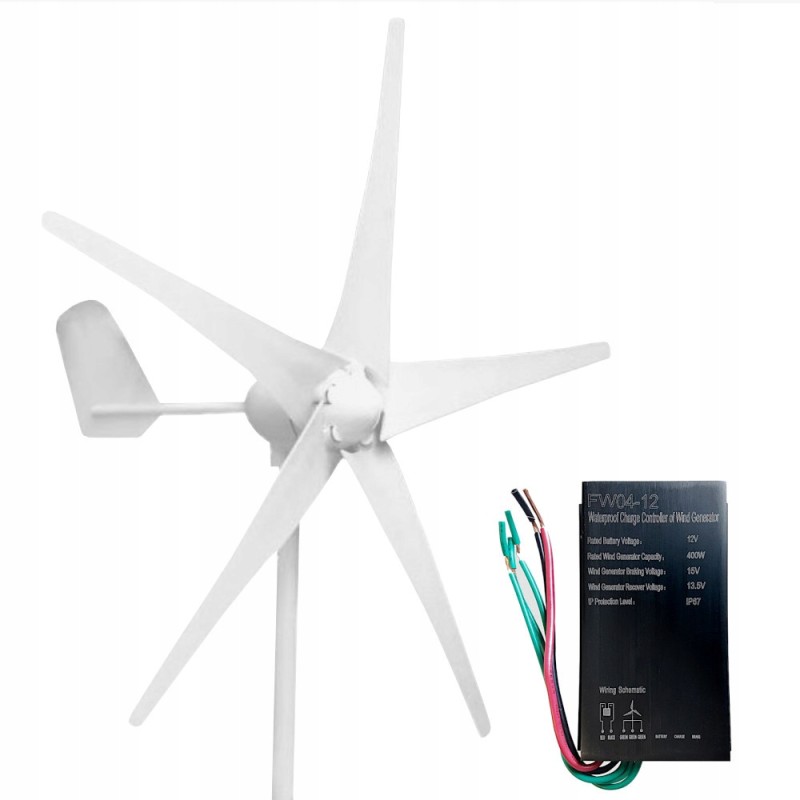

Wind generator wind turbine 400w 12v

FW 400W 12V wind turbineProduct code: 32895

NE-400M-5 12V 400W wind turbine with low starting speed, has a high level of wind energy and optimized aerodynamic shape and structure of the blades, which increase the use of wind and annual energy production.

The set does not include mast included.

The set includes:* 1x Wind turbine 400W 12V

* 1x Wind regulator 12V 400W

Wind turbine 400W 12V Rated power: 400W

Maximum power: 430W

Rated voltage: 12V AC

Starting speed: 2.5m/ s

Rated wind speed: 10m/s

Limiting wind speed: 45m/s

Rotor diameter: 170 cm

Net weight: 15 kg

Number of blades: 5

Mast diameter: 4 - 5.5 cm

Blade material: nylon

Generator housing: aluminum alloy

Operating temperature: -40°C - 80°C

12V 400W wind controller Maximum power supported by the controller:: 400W

Battery rated voltage:: 12V

Overcharge protection:: 15V

Battery cut-off voltage:: 13.5V

Protection:: IP67

Static power consumption:: ‹15mA

Weight:: 350g

Three diodes:: battery / charging / brake

Five wires:: 2x battery + 3x turbine

Turbine power depending on wind force

Wind power is of great importance when producing electricity from wind turbines. Select the windiest places for wind generators.

3 m/s (10 km/h): 10% of power

5 m/s (18 km/h): 20% of power

7 m/s (25 km/ h): 60% power

11 m/s (40 km/h): 100% power
