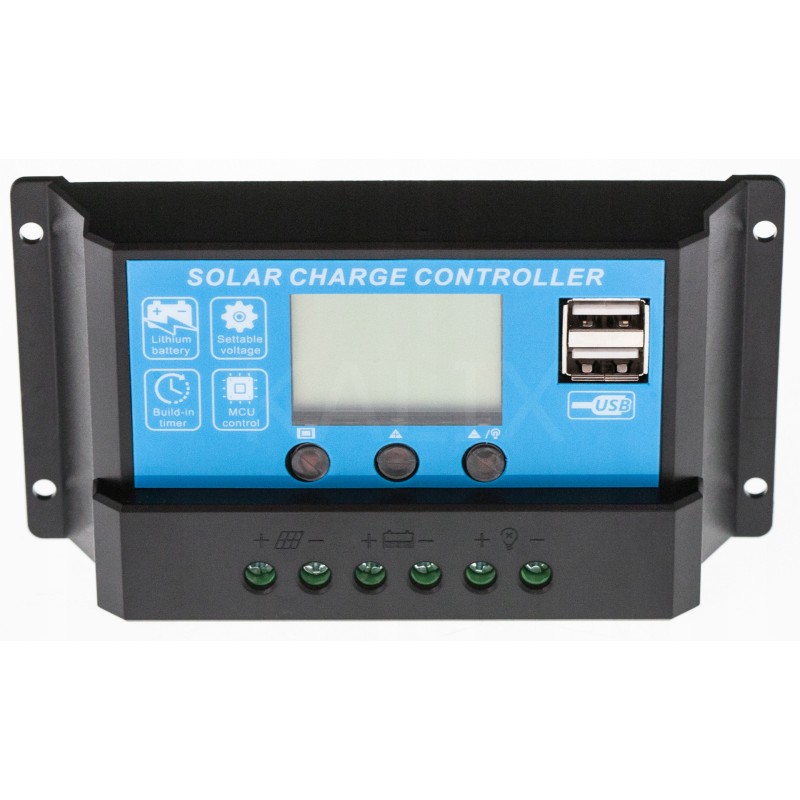

Solar charging controller volt polska sol pwm 30a lcd

SOL PWM 30A SOLAR CHARGING REGULATORThe SOL PWM 30A 2xUSB solar controller is used to control the operation of autonomous photovoltaic systems. The device ensures the correct charging current characteristics for the battery(s), additionally protecting them against deep discharge or overcharging. SOL PWM solar controllers can be used for installations with a solar panel and 12 or 24V batteries.

The most important features:

Automatic recognition of the 12/24V input voltage value

Clear LCD display and interface controlled by 2 buttons located on the housing

Efficient 3 -phase PWM charging (Pulse Width Modulation - Signal Phase Modulation)

Battery charge level control with the possibility of resetting the memory at night (use e.g. for street lighting)

Overload, short-circuit, overvoltage, undervoltage protection against battery overcharging/discharging , against reverse polarity

Built-in 2 USB ports

System voltage: 12/24V

Maximum voltage of solar panels: 50V

Own working current: ≤15mA

Maximum charging current: 30A

LVD: 10.7V 9V..12Vx2 24V

LVR: 12.6V/11V..13.5Vx2 24V

Holding voltage: 13.6V/13V..15Vx2 24V

Overcharge protection: 16.5Vx2 for 24V

Reverse polarity protection: Yes

Charging mode: PWM

Operating temperature : -35 to +55°C

Cabling cross-section: 28-10AWG

Dimensions: 187x98x50mm

Weight: 370g

USB: 2xbuilt-in USB port 5V/2A
