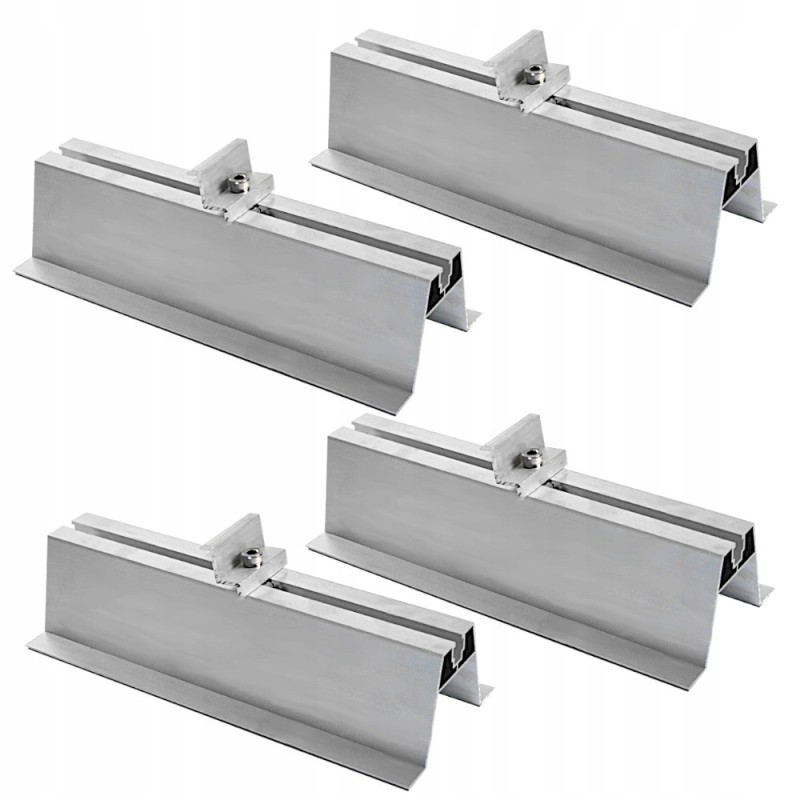

Trapezoidal solar panel holders, set of 4 pcs

Trapezoidal holder for solar panels, set of 4.* Product code: 36564

Set of trapezoidal holders for solar panels with a clamp - an ideal solution for anyone planning to install panels on a sloping and flat roof. The set includes 4 sets of handles, the necessary clamps, Allen keys and recesses. Made of high-quality aluminum, they guarantee durability and solid assembly. The universal shape makes them fit all types of solar panels with a 3 cm and 3.5 cm thick frame. Regardless of whether you plan installation on a sloping or flat roof, these brackets will meet your expectations.

The set includes:* 4x Bracket (trapezoidal bridge) for solar panels 300x70

* 4x Aluminum clamp 30mm

* 4x Steel Allen screw M8x25

* 4x Aluminum sliding keyway with M8 ball

Technical data **** Dimensions: 300x70x114

Upper channel: M8 nut/DIN 934A2

Lower channel: Self-drilling screw with head 6.0x25 BI-METAL

Holder (trapezoidal bridge) for solar panels 300x70 - 4 pieces Dimensions: 300x70x114

Upper channel: M8/DIN 934A2 nut

Lower channel: Self-drilling screw with head 6.0x25 BI-METAL

Aluminum clamp 30mm - 4 pieces Material: Aluminum

Dimensions: 28.6x30x2.8

Thickness: 2.8 mm

Mounting: M10 screw DIN 912 A2

Steel Allen screw M8x25 - 4 pieces Dimensions: M8x25 mm

Application: Connection of a PV profile with a clamp

Aluminum sliding groove with ball M8 - 4 pieces Dimensions: M8

Application: PV profile
