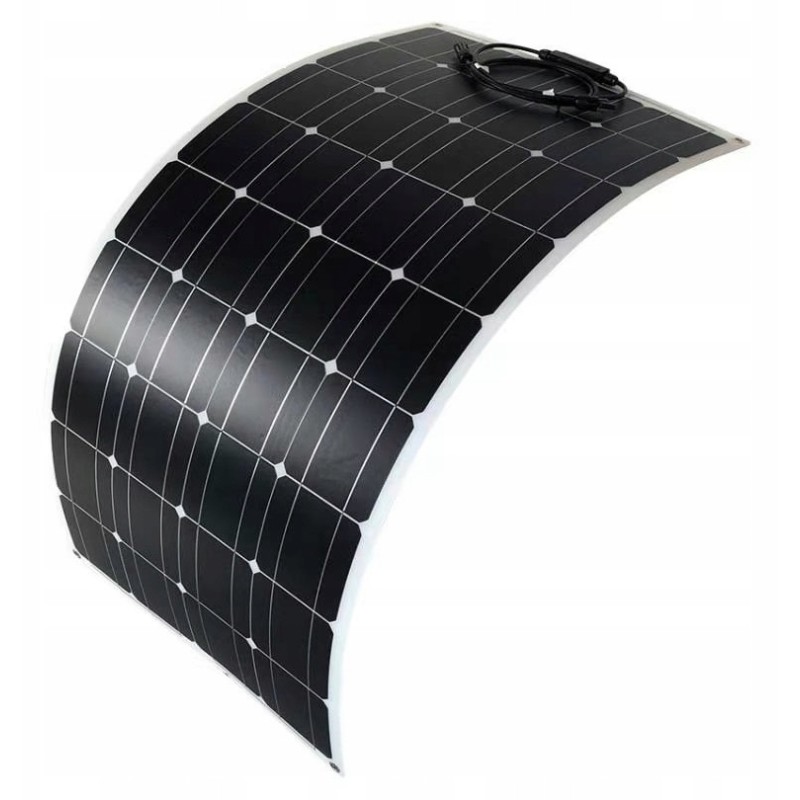

Flexible mono solar panel 200w 18v gr

Description: The flexible MONO FLEX photovoltaic panel with a power of 200 watts has a cell conversion efficiency of over 22%. . Waterproof, ideal for installation in systems. Maximum power Pmax (W):200W. Voltage at maximum power Vmp (V):18.72.

Technical data: Maximum power Pmax (W):200W

Tolerance (%):± 3%

Open circuit voltage Voc (V ):22.46

Voltage at maximum power Vmp (V): 18.72 V

Current at maximum power Imp (A):10.68

Short-circuit current Isc (A) :11.54

Module efficiency (%): 18

Solar cell efficiency (%) :22

Nominal fuse current (A): 15

Protection class: IP65

Maximum voltage of the panel system (V): DC1000

Operating temperature range: -40°C-85°C

Dimension: 680x1525x3mm

Weight: 4.6kg

Quality system: Electrical insulation test

Resistance to external conditions test

Hot-spot test

UV resistance test

Resistance to temperature changes, hail impact test

Moisture resistance test

Endurance test

Resistance to mechanical load test

Free for the regulator 1 piece of high-power LED module with a driver, white with a neutral color for emergency lighting for 12 V as in the photo below.

On our other auctions you can buy:

1. tee to connect two panels, set auction no. 12470567493

2. USB charger module, auction no. 12470574841

3. roof clip for cables, auction no. 12470673791

4. set of frames for mounting the panel, auction no. 12470709868

Delivery contents:

200W panel, 1 piece

1 free LED module
