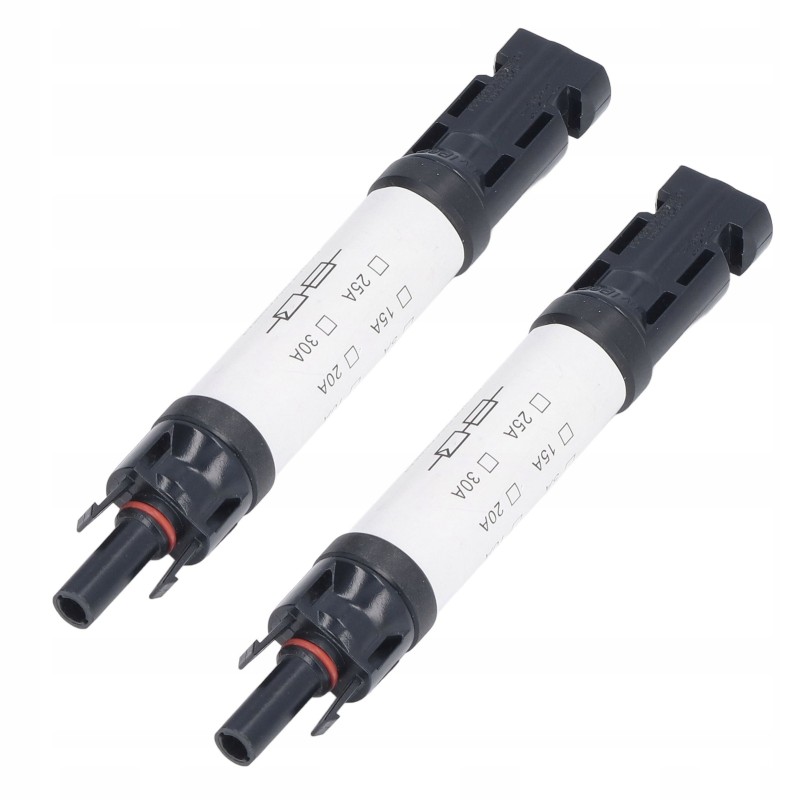

2 sets of photovoltaic connectors, IP68 set

Feature:1. IP68 Waterproof: The photovoltaic connector kit has good waterproof performance, and the waterproof level reaches IP68.

2. Anti UV: 1000V photovoltaic connectors have excellent anti-aging and anti-UV properties, very durable.

3. Easy to Connect Disconnect: The waterproof solar fuse connector is easy to connect and disconnect and is compatible with photovoltaic connectors.

4. Ease of Use: The solar panel's PV connector is easily connected and disconnected by pressing both sides of the built-in lock on the connector with your fingers.

5. Scope of application: photovoltaic connectors are suitable for solar panels, solar cables, solar controllers, etc.

Specification: Item type: photovoltaic connector kit

Material: PPO plastic body, copper-tinned hardware, special PV fuse

Technical data (current rated): 10A 15A 20A 30A

Model: MC F

Rated voltage: 1000V

Absolutely green material: PPO material

Conductor material: tinned copper

Ambient temperature: -40℃ ~ + 90℃

Resistance on product temperature: -40 ℃ ~ + 135 ℃

Security level: DCII

Waterproof degree: IP68

Contact resistance: ≤0.35 mΩ

Connection system: multi-point connection

Self-locking system: built-in

Pull-out force : ≥50N

Insertion force: ≤50N

Resistance level: Ul94 VO

Scope of application: solar panel connection

Weight: approx. 168g / 5.9oz

Package list: 2 x Photovoltaic connector kit (8 loose parts)
