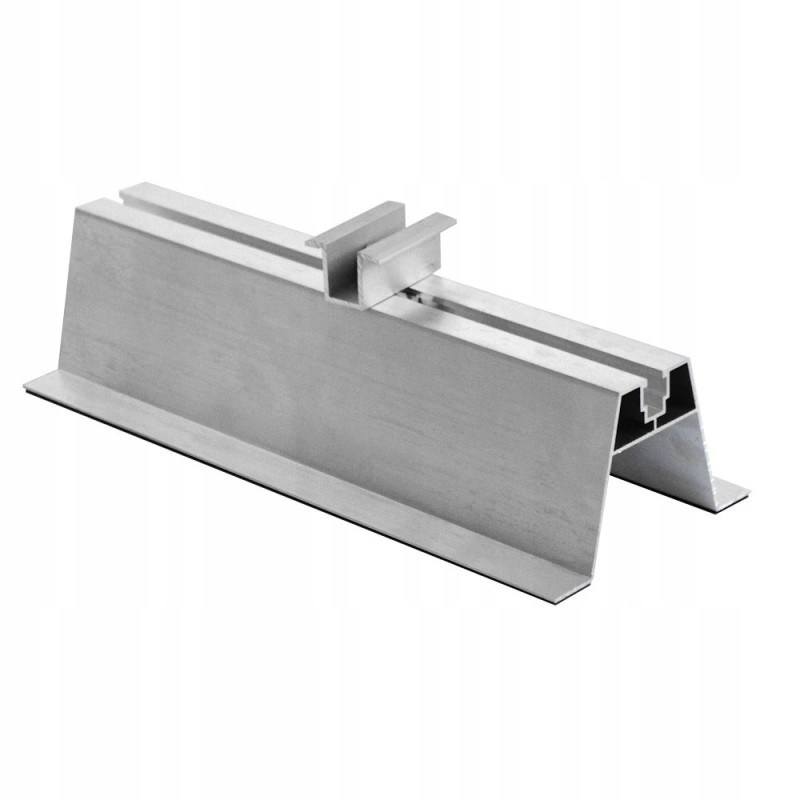

Trapezoidal handles, solar panel set

Trapezoidal connector holder for solar panels set * Product code: 36629

Set of trapezoidal connectors for solar panels with a double clamp - an ideal solution for anyone planning to install panels on a sloping and flat roof. The set includes a set of trapezoidal handles, a double clamp, an Allen key and a keyway. Made of high-quality aluminum, they guarantee durability and solid assembly. The universal shape makes them fit all types of solar panels with a 3 cm and 3.5 cm thick frame. Regardless of whether you plan installation on a sloping or flat roof, these brackets will meet your expectations.

The set includes:* 1x Bracket (trapezoidal bridge) for solar panels 300x70

* 1x Roof clamp, middle - silver 24.3 x 36

* 1x Steel Allen screw M8x25

* 1x Aluminum sliding keyway with M8 ball

Technical data **** Dimensions: 300x70x114

Upper channel: Nut M8/DIN 934A2

Lower channel: Self-drilling screw with head 6.0x25 BI-METAL

Holder (trapezoidal bridge) for solar panels 300x70 Dimensions: 300x70x114

Upper channel: M8/DIN 934A2 nut

Lower channel: Self-drilling screw with head 6.0x25 BI-METAL

Roof clamp, middle - silver 24.3 x 36 Dimensions: 24.3x36x50

Thickness: 2.4 mm

Mounting: M10 screw DIN 912 A2

Application: Pitched roof, flat roof, above-ground

Steel Allen screw M8x25 Dimensions: M8x25 mm

Application: Connection of a PV profile with a clamp

Aluminum sliding groove with ball M8 Dimensions: M8

Application: PV profile
