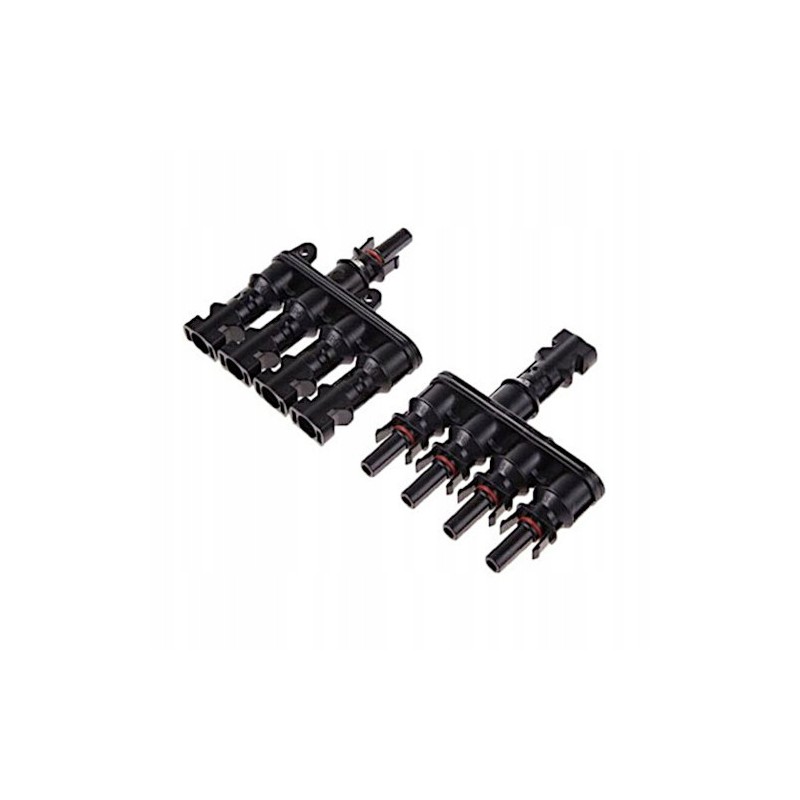

MC4 connectors, dual type, parallel PV connections

Connectors for parallel connections 4 in 1* Product code: 4S-2869

MC4 connectors (+ and -) intended for use in photovoltaic installations. They enable professional connection of panels.

Thanks to VCX connectors, the connection is stable and safe, and high mechanical resistance and IP67 protection level ensure an extremely long product life.

The material allows for the operation of a current of 32A and a voltage of 1000 VDC.

Technical Data **** Rated current: 32A

Rated voltage: 1000 VDC

Test voltage: 6000 V (50 Hz 1 minute)

Type: MC4 quadruple

Insulation material: PPO (polypropylene)

Protection level: IP67 (EN60529)

Range of compatible cables: 2.5 / 4 / 6 mm²

Application: indoor and outdoor

Operating temperature: (-40°C) - (+90°C)

Length: 110 mm

Standard: EN55032
