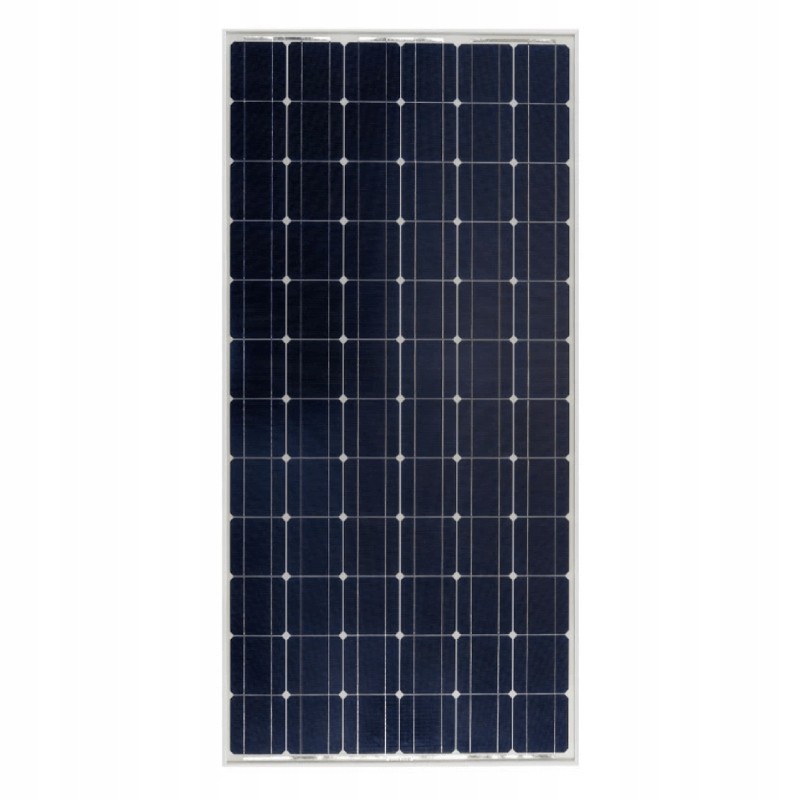

Solar panel 175w mono 4a 12v victron energy

SOLAR PANEL 175W - 12V VICTRON ENERGY The Victron Energy 175W monocrystalline panel is dedicated to charging batteries with a capacity of no more than 165 ah. Monocrystalline panels are distinguished by the fact that they are made of uniform silicon and are characterized by a uniform dark color. Modules of this size are classified as low voltage and are dedicated to work with PWM charging regulators and MPPT regulators. The panel construction is durable and light, so it can be easily mounted on the roof. The panel is covered with tempered glass, which additionally protects against hail and other external factors. The glass used in the structure is characterized by the highest quality and maximum light transmittance.

The module is terminated with a junction box with an M6 ring connector. The panels are covered by a 5-year warranty on workmanship and a 30-year energy warranty. After 30 years, the panel should not have less than 80% of its original efficiency.

CHARACTERISTIC FEATURES: Product of the highest quality

The panel is resistant to various weather conditions and external factors Made of uniform silicon

PRODUCT PARAMETERS: Brand: VICTRON ENERGY

Symbol: SOLAR-1

Type: monocrystalline

Series: 4A

Power after 30 years: 80%

Power after 19 years: 90%

Dimensions: 1485 x 668 x 30 mm

Operating temperature range: from -40 to 85 ºC

Max. system voltage: 1000 V

Short-circuit current Isc: 9.89 A

Open-circuit voltage Voc: 23.7 V

current max. Imp: 9.03 A

Voltage max. Vmp: 19.4V

Max power: 175 W

Weight: 11 kg
