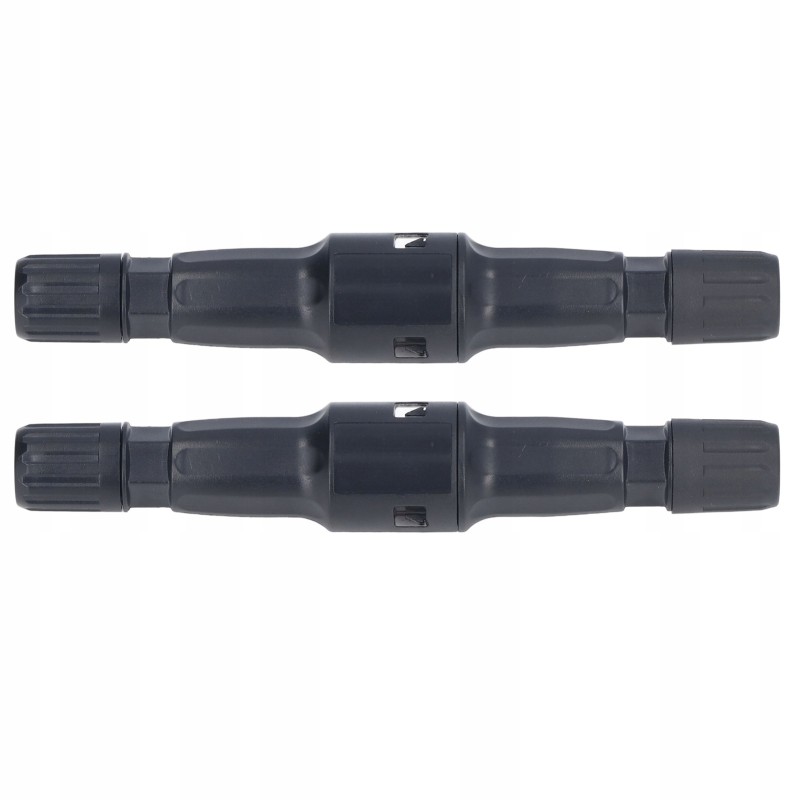

2 sets of 1500v solar photovoltaic connectors

Feature:1. IP68 Waterproof: The photovoltaic connector kit has good waterproof performance, and the waterproof level reaches IP68.

2. Anti UV: 1500V photovoltaic connectors have excellent anti-aging and anti-UV properties, very durable.

3. Easy to Connect Disconnect: The waterproof solar fuse connector is easy to connect and disconnect and is compatible with photovoltaic connectors.

4. PPO coating: The housing of the built-in solar fuse is made of PPO, which is heat-resistant, abrasion-resistant, flame-retardant and stain-resistant.

5. Scope of application: photovoltaic connectors are suitable for solar panels, solar cables, solar controllers, etc.

Specification: Item type: photovoltaic connector kit

Material: PPO plastic body, copper-tinned hardware, special PV fuse

Technical data (current rated): 10A 15A 20A 30A

Model: MC1515F

Rated voltage: 1500V

Description: Built-in 1500V photovoltaic fuse

Absolutely green material: PPO material

Conductor material: tinned copper

Ambient temperature: -40 ℃ ~ + 90 ℃

Product temperature resistance: -40 ℃ ~ + 135 ℃

Security level: DCII

Waterproof grade: IP68

Contact resistance: ≤0.35 mΩ

Connection system: multi-point connection

Self-locking system: built-in

Pull-out force: ≥50N

Insertion force: ≤50N

Resistance level: Ul94 VO

Scope of application: solar panel connection

Weight: approx. 87g / 3.1oz

Package list :2 x set of photovoltaic connectors
