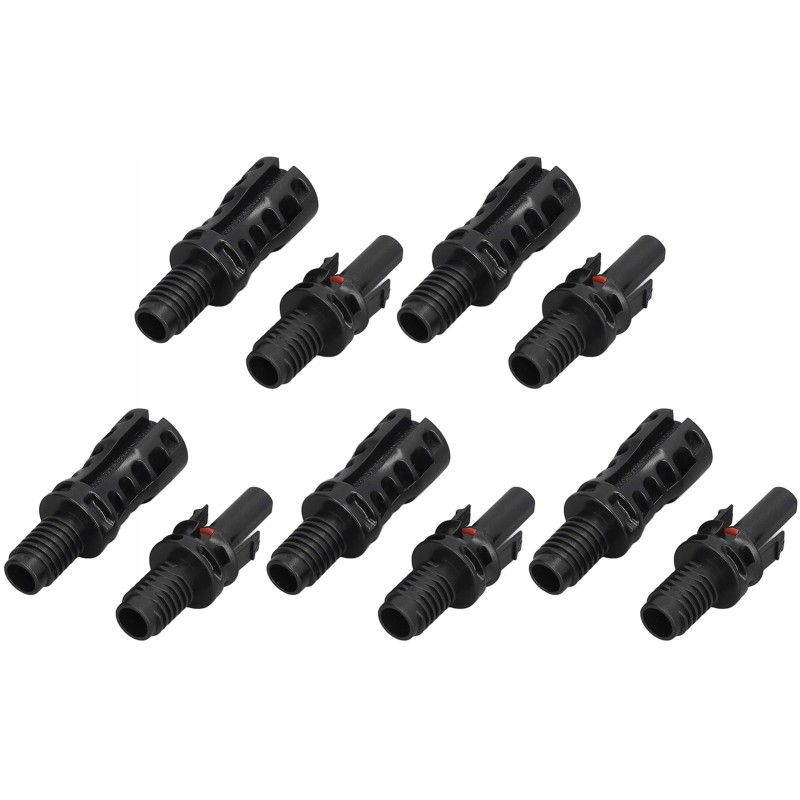

5 sets of solar branch connectors

Feature:1. HIGH QUALITY MATERIAL: The board end joints are made of high quality PPO and copper materials, which is strong and durable and has a long service life.

2. COATING PERFORMANCE: The PPO coating of the solar connector is resistant to oxidation, ultraviolet radiation and high temperature.

3. REUSABLE: This male and female faceplate end connector can be used for multiple mating cycles, ensuring recycling.

4. PORTABLE: The solar connector is exquisite in crafts, light and practical, easy to carry without burden.

5. EASY TO USE: Press the two sides of the built-in lock on the male connector with your fingers, it can be easily inserted and detached, and it is not easy to fall off.

Specification: Item Type: Solar Branch Connectors

Material: PPO plastic body + copper tinned stamping equipment ( hollow core)

Conductor material: tinned copper

Gross weight: approx. 85g/3.0oz

Description: Male and female connector at the end of the board

Ambient temperature: -40℃ - +90℃ / -40 ℉ - + 194 ℉

Product temperature resistance: -40 ℃ - + 135 ℃ / -40 ℉ - + 275 ℉

Safety level: DCII

Waterproof grade: IP68

Contact resistance: ≤0.35 mΩ

Connection system: multi-point connection

Self-locking system: snap on

Wiring method: crimp

Wiring specification: 2.5m㎡, 4m㎡, 6mm㎡

Rated current: 1.5m㎡ 17A

Rated current: 2 .5m㎡ 22.5A

Rated current: 4m ~ 6m㎡ 30A

Resistance level: Ul94-VO

Scope of application: solar panel connection

Package list: 5 sets x board connector (40pcs)
