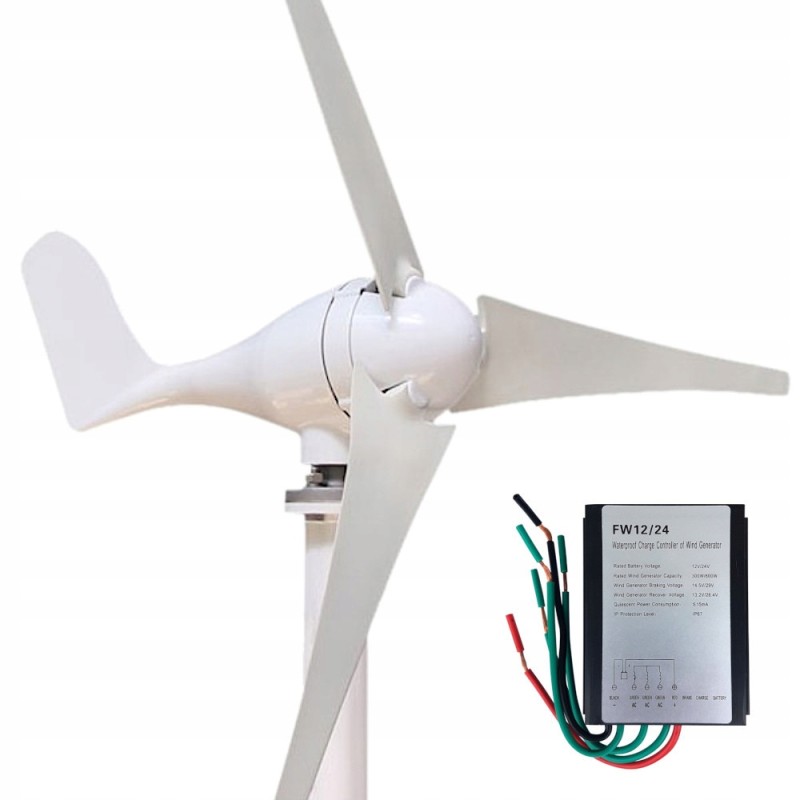

Wind generator wind turbine 600w 24v

FW 600W 24V wind turbine Product code: 30777

600W 24V wind turbine with low starting speed, has a high level of wind energy and optimized aerodynamic shape and structure of the blades, which increase wind utilization and annual energy production. The set does not include a mast.

The set includes:* 1x Wind turbine 600W 24V

* 1x Wind regulator 12V/24V 300W/600W

Wind turbine 600W 24V Rated power: 600W

Maximum power: 610W

Rated voltage: 24V AC

Starting speed: 2.5m/s

Rated wind speed: 11m/s

Limiting wind speed: 45m/s

Rotor diameter: 1.70m

Net weight: 17kg

Number of blades: 3

Mast diameter : 4 - 5.5 cm

Blade material: nylon

Generator casing: aluminum alloy

Operating temperature: -40°C - 80°C

12V/24V 300W/600W wind controller Maximum power supported by the controller: 300W / 600W

Battery rated voltage: 12V / 24V

Overcharge protection: 14.5V / 29V

Battery cut-off voltage: 13.2V / 26.4V

Protection : IP67

Static power consumption: ‹15mA

Three diodes: battery / charging / brake

Compatibility with batteries: Liquid, AGM, Gel

Five cables: 2x battery + 3x turbine

Dimensions: 10 x 8.7 x 2.8 cm

Weight: 350g

Turbine power depending on wind force

Wind power is of great importance when producing electricity from wind turbines. Select the windiest places for wind generators.

3 m/s (10 km/h): 10% of power

5 m/s (18 km/h): 20% of power

7 m/s (25 km/ h): 60% power

11 m/s (40 km/h): 100% power
