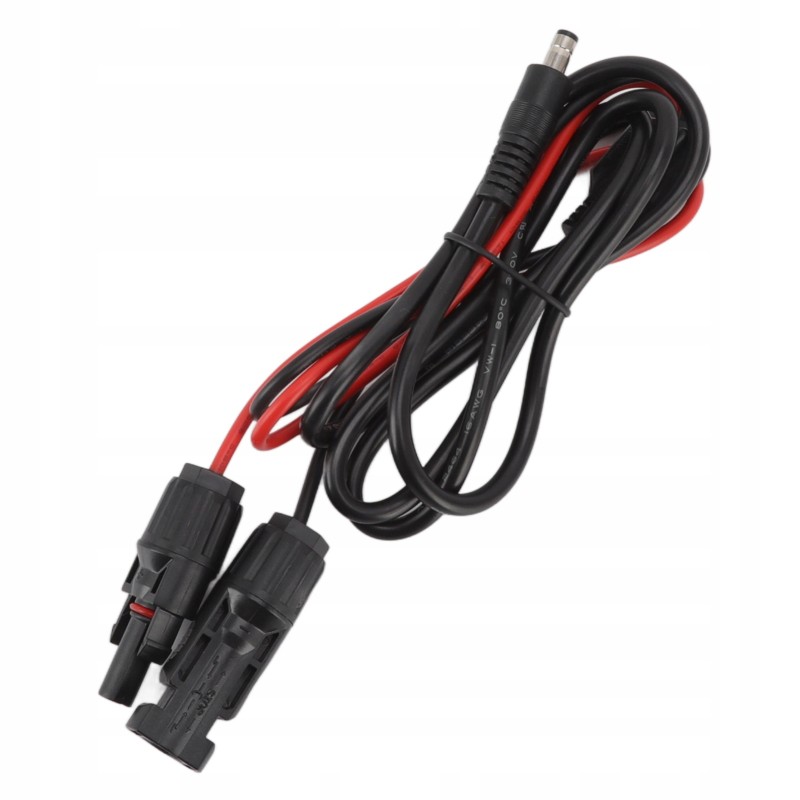

16awg solar connector to dc 5 5mm male cable

Feature:1. 16AWG: The cable is made of premium 16AWG copper wire, which is very thick and durable. Power loss can be minimized by using large diameter 16AWG cables.

2. Wire Specification: Main wire is in model 2464 16awg, 5.0mm OD and 1.0m long, Branch line is in model 1015, 16awg, 3.1mm OD and 0.5m long.

3. Heat-resistant PVC sheath: The cable adopts PVC sheath, which has the best insulating effect, can withstand high temperature up to 80℃.

4. Voltage and current parameters: The power is less than 156W. Less than the safety voltage of 36V, and the current is within 13A.

5. Applications: DC5.5mm solar extension cable connector is easy to use and install. Applicable to most solar panel systems, suitable for home, industry, etc.

Specification: Item type: solar extension cable

Model: for male DC5521

Sheath material: PVC

Core material: oxygen-free copper

Wire: 2464 16awg, outer diameter: 5.0mm/0.2in, 1015 16awg, outer diameter: 3.1mm/0.1in

Specification: main line 2464, 16awg 1.0m/39.4in, branch 1015, 16awg 0.5m / 19.7in

Number of pin cores: 2 cores

Nominal cross-section: 1.31mm²

Standard length: 1.5m / 59.1in

Product specifications: 2x16AWG

Resistance for temperature: 80℃

Number of actions: 42

Power: ≤ 156W

Safety voltage: ≤ 36V

Current: ≤ 13A

How to use:Use according to the appropriate voltage and current parameters.

Package list :1 x Solar Connector to Male Cable with 5.5mm DC Adapter
