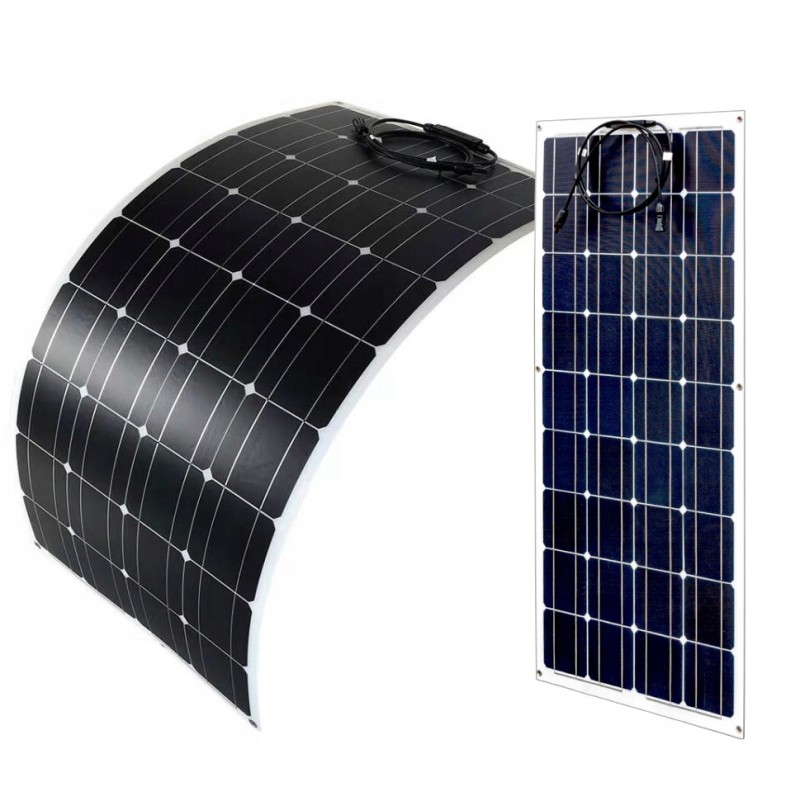

Flexible mono photovoltaic panel 200w 18v

MONO-CRYSTALLINE FLEXIBLE PANEL 200W MONO FLEX flexible panel has a cell conversion efficiency of over 22%. The panel is covered with PET foil and laminated EVA foil. Waterproof, ideal for installation in systems.

Extremely flexible solution - thanks to the ability to bend the panel by up to 30 degrees, it will perfectly adapt to any surface, being used on boats, camper roofs and home photovoltaic installations

Convenient installation: Each MONO solar module FLEX is equipped with 4 mounting holes and cables with MC4 connectors.

Quality guarantee:

Electrical insulation test

Resistance test to external conditions

Hot-spot test

UV resistance test

Endurance test to temperature changes, hail impacts

Moisture resistance test

Endurance test

Resistance to mechanical load test

SPECIFICATION MONO FLEX 200W Cell type: Monocrystalline

Solar cell efficiency: 22%

MM dimensions: 1585/700/30

Operating temperature range: -40°C-85°C

Maximum power Pmax: 200W

Maximum current Imp: 10.68A

Power tolerance: ± 3%

Maximum DC voltage: 1000V

ISC short-circuit current: 11.54A

Open circuit voltage Vmp: 18.72V

Outer coating: PET foil and laminated EVA foil

Connector type: MC4

Weight: 4.6 kg

APPROXIMATE BATTERY CHARGING TIMEThe table below shows the time needed to charge batteries available on the market depending on the power of the photovoltaic system.

A 180W solar battery will easily charge a 40Ah battery in about 6 hours.
