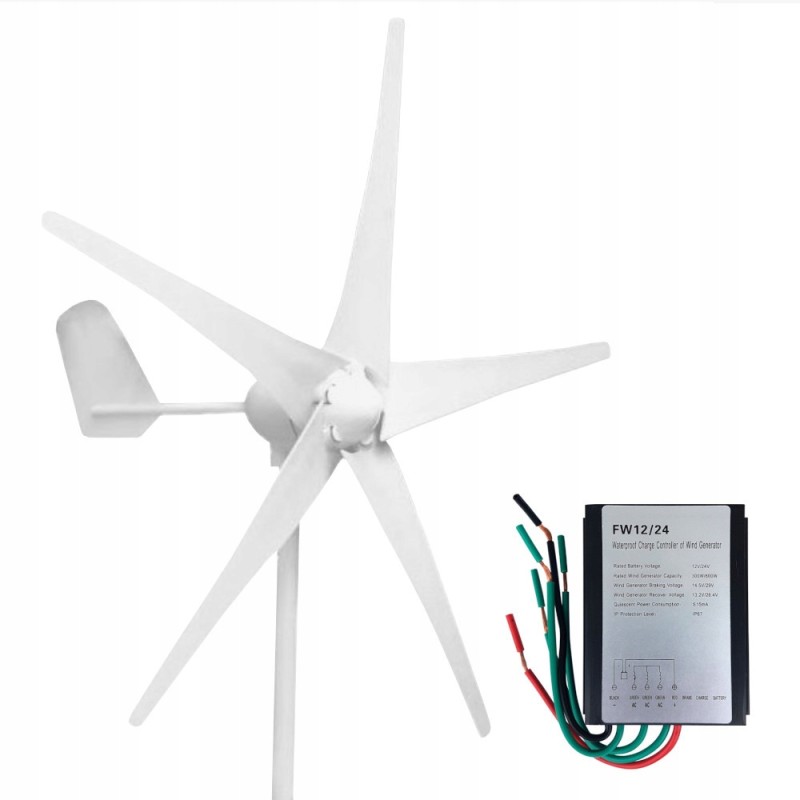

Wind generator wind turbine 400w 24v

FW 400W 24V wind turbineProduct code: 28322

NE-400M-5 24V 400W wind turbine with low starting speed, has a high level of wind energy and optimized aerodynamic shape and structure of the blades, which increase the use of wind and annual energy production.

The set does not include mast included.

The set includes:* 1x Wind turbine 400W 24V

* 1x Wind regulator 12V/24V 300W/600W

Wind turbine 400W 24V Rated power: 400W

Maximum power: 430W

Rated voltage: 24V AC

Starting speed : 2.5 m/s

Rated wind speed: 10 m/s

Limiting wind speed: 45 m/s

Rotor diameter: 134 cm

Net weight: 15 kg

Number of blades: 5

Mast diameter: 4 - 5.5 cm

Blade material: nylon

Generator housing: aluminum alloy

Operating temperature: -40°C - 80°C

12V/24V 300W/600W wind controller Maximum power supported by the controller: 300W / 600W

Battery rated voltage: 12V / 24V

Overcharge protection: 14.5V / 29V

Battery cut-off voltage: 13.2V / 26.4V

Protection : IP67

Static power consumption: ‹15mA

Three diodes: battery / charging / brake

Compatibility with batteries: Liquid, AGM, Gel

Five cables: 2x battery + 3x turbine

Dimensions: 10 x 8.7 x 2.8 cm

Weight: 350g

Turbine power depending on wind force

Wind power is of great importance when producing electricity from wind turbines. Select the windiest places for wind generators.

3 m/s (10 km/h): 10% of power

5 m/s (18 km/h): 20% of power

7 m/s (25 km/ h): 60% power

11 m/s (40 km/h): 100% power
