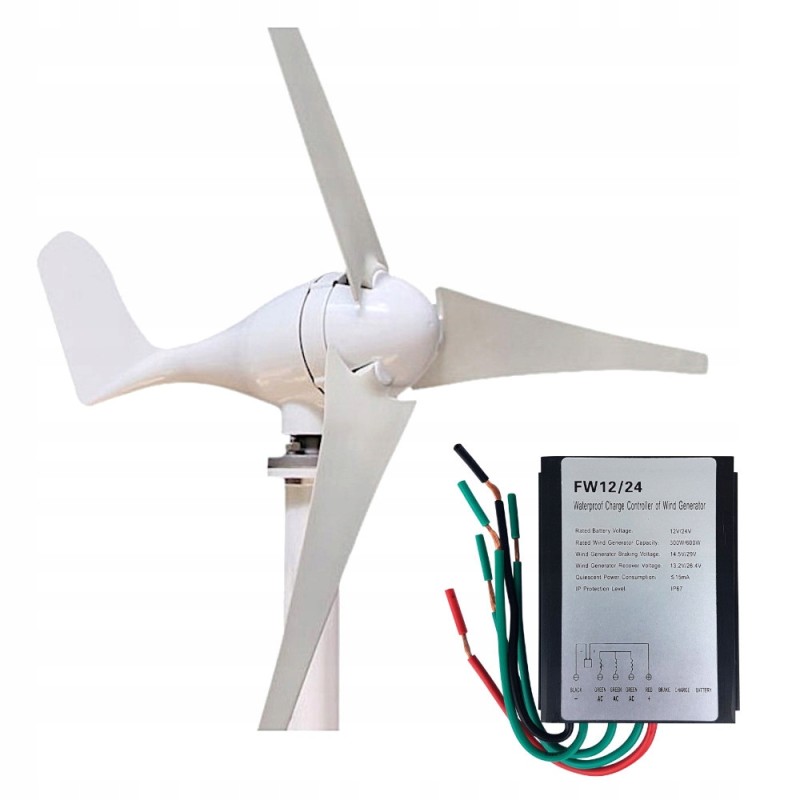

Wind generator wind turbine 300w 12v

FW 300W 12V wind turbine Product code: 36000

300W wind turbine with 12V DC wind regulator with low starting speed, has high wind energy level and optimized aerodynamic shape and structure of blades, which increase wind utilization and annual energy production. The set does not include a mast.

The set includes:* 1x Wind turbine 300W 12V

* 1x Wind regulator 12V/24V 300W/600W

Wind turbine 300W 12V Rated power: 300W

Maximum power: 330W

Rated voltage: 12V AC

Starting speed: 2.5m/s

Rated wind speed: 11m/s

Limiting wind speed: 45m/s

Rotor diameter: 1.35m

Net weight: 7.5kg

Number of blades: 3

Diameter mast: 4 - 5.5 cm

Blade material: nylon

Generator housing: aluminum alloy

Operating temperature: -40°C - 80°C

12V/24V 300W/600W wind controller Maximum power supported by the controller: 300W / 600W

Battery rated voltage: 12V / 24V

Overcharge protection: 14.5V / 29V

Battery cut-off voltage: 13.2V / 26.4V

Protection : IP67

Static power consumption: ‹15mA

Three diodes: battery / charging / brake

Compatibility with batteries: Liquid, AGM, Gel

Five cables: 2x battery + 3x turbine

Dimensions: 10 x 8.7 x 2.8 cm

Weight: 350g

Turbine power depending on wind force

Wind power is of great importance when producing electricity from wind turbines. Select the windiest places for wind generators.

3 m/s (10 km/h): 10% of power

5 m/s (18 km/h): 20% of power

7 m/s (25 km/ h): 60% power

11 m/s (40 km/h): 100% power
