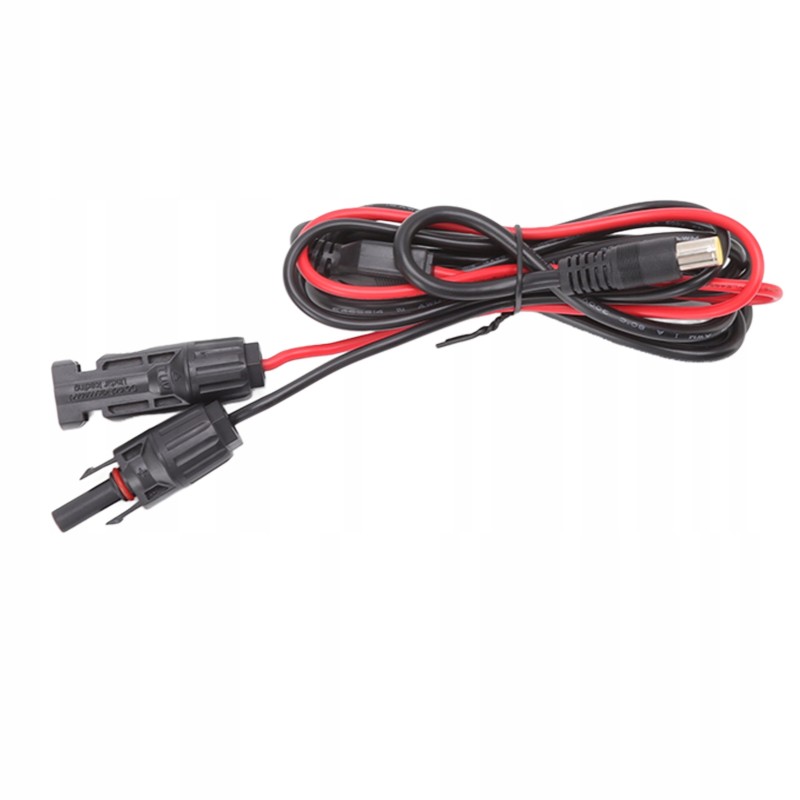

Solar panel connector adapter female to male

Feature:1. 16AWG Copper: The solar panel extension cable is made of high quality 16AWG copper wire, which is very thick and durable.

2. Practical: Our solar cable wire is energy-saving, so power loss can be minimized by using 16AWG large diameter cables.

3. Best Insulation Effect: The solar panel connector adapter has PVC cover, best insulation effect and heat resistance 80℃.

4. Easy to use: Our DC solar extender is easy to use and install and is applicable to photovoltaic cells and energy storage batteries.

5. Specification: The main line of this extension cord is 2464, 16awg, 1.2m, OD5.0mm, and the branch line is 1015, 14awg 0.6m, OD3.5mm.

Specification: Item type: Solar panel connector adapter

Material: copper, PVC

Gross weight: 125g/4.4oz

Wire: 2464 16awg, outer diameter: 5.0mm, 1015 14awg, outer diameter: 3.5mm

Specification: main line 2464, 16awg 1.2m/47.2in, Branch 1015, 14awg 0.6m/23.6in

Scope of application: solar photovoltaics, energy storage battery

Number of pin cores: 2 cores

Nominal cross section: 1 .31mm²

Standard Length: 1.8m/70.9in

Product Specification: 2x16AWG

Interface Type: DC

Temperature Resistance: 80℃

Core Material: Oxygen-Free Copper

Number of Threads: 41

Scope of application: Power cord DC extension cord

Power: ≤ 200W

Safety voltage: ≤ 36V

Current: ≤ 13A

How to use:Use according to the appropriate voltage and current parameters.

Package list :1 x Solar DC Extension Cable
