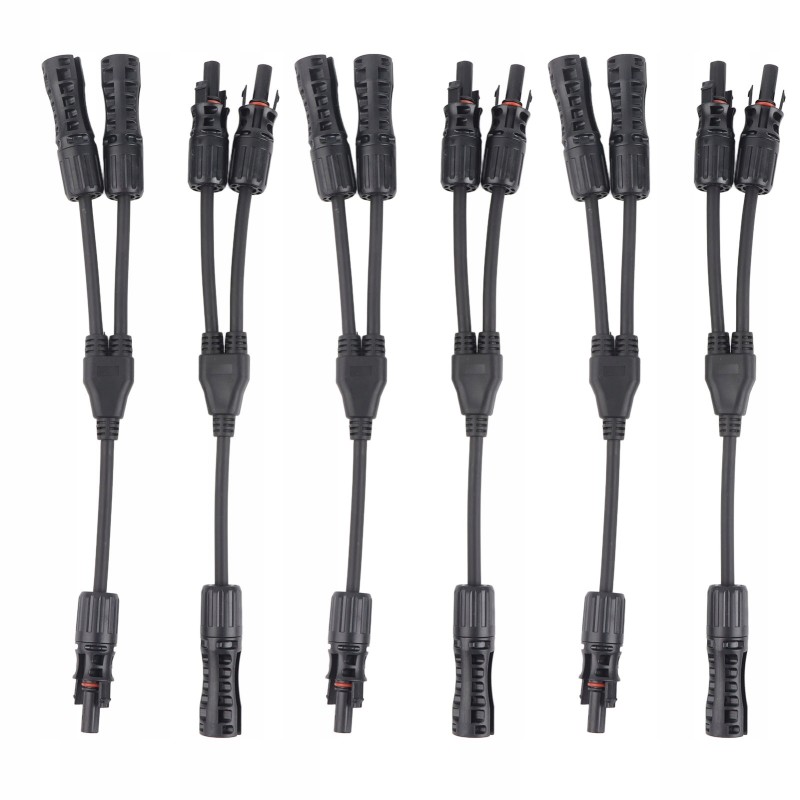

Solar panel connectors parallel adapter

Feature:1. HIGH QUALITY MATERIAL: The solar panel connector is made of high quality PPO material, high quality material, solid and durable to ensure long-term use.

2. GOOD PERFORMANCE: Radiation resistance, low temperature resistance, high temperature resistance, high strength, impact resistance, flame retardant.

3. WATERPROOF: Male and female connectors and branches are a set, using high-strength waterproof wheel, and the structure is waterproof and dustproof.

4. EASY TO USE: Just press the two sides of the built-in lock on the male connector with your fingers, it can be easily inserted and detached, and it is not easy to fall off.

5. SCOPE OF APPLICATION: The connection system adopts multi-point connection, temperature resistance -40℃ ~ +135℃, suitable for solar panel connection.

Specification: Item type: solar panel connector

Material: PPO plastic body + tinned copper hardware + wire photovoltaic

Model: 15MCY201

Rated voltage: 1500V

Absolutely green material: PPO material

Conductor material: tinned copper

Ambient temperature: -40℃ ~ + 90℃

Temperature resistance: -40℃ ~ +135℃

Security Level: DCII

Waterproof Degree: IP68

Contact Resistance: ≤0.35mΩ

Connection System: Multi-point Connection

Click System: Built-in

Wiring Specification: 4m㎡

Wiring Method: crimp

Rated current: 30A

Resistance level: UL94-VO

Scope of application: solar panel connection

Package list: 3 sets x photovoltaic connectors (6pcs)
