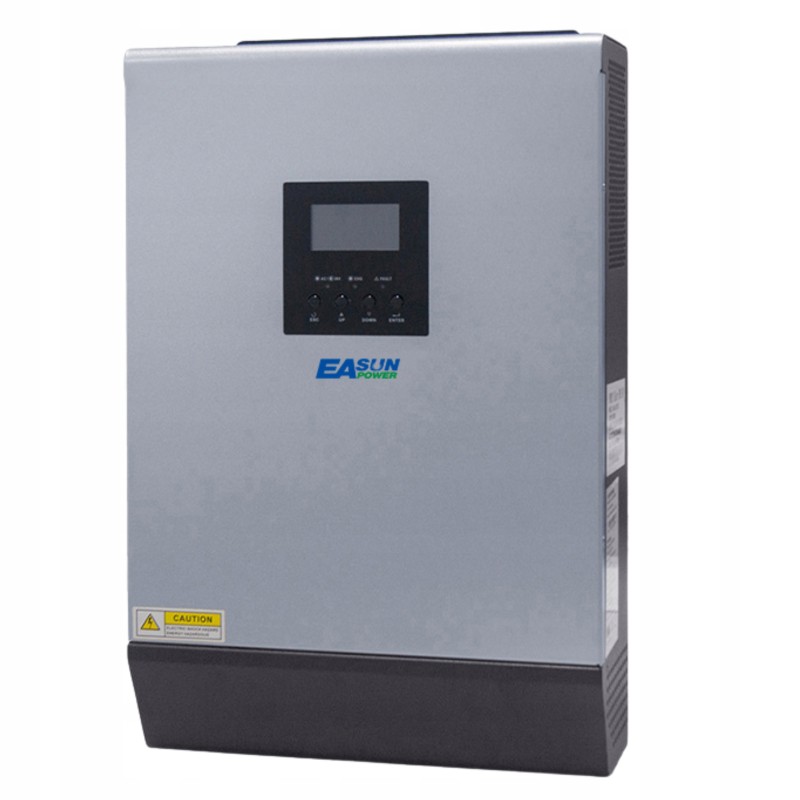

Easun 5kva off grid solar hybrid inverter

EASUN 5KVA hybrid off-grid solar inverter EASUN solar inverters are designed to build independent 230V off-grid power supply systems based on energy obtained from PV panels, the power grid and a battery. Thanks to their modular design and flexible configuration, EASUN inverters can operate in UPS mode with battery charging from PV panels and/or the power grid or supported by energy from the grid.

Important!

Does not work without batteries

First, please connect the batteries to the inverter

Input

Voltage: 230VAC

Selectable voltage range: 170-280VAC (for Persongl computers), 90-280VAC (for home appliances)

Frequency range: 50Hz/60Hz (automatic sensitivity)

Output

AC voltage regulation (Batt. Mode): 230VAC ± 5%

Power output: 10000VA

Efficiency (peak): 93%

Transfer time: 10ms (for personal computers), 20ms (for home devices)

Wave shape: Pure sine wave

AC battery and charger

Battery voltage: 48VDC

Floating charging voltage: 54VDC

Overcharge protection: 60VDC

Maximum charging current: 60A

Charging current: 50A

Maximum PV array power : 2400W

Maximum open voltage of PV array: 105 VDC

Power consumption in standby mode Consumptio: 2 W

Dimensions

Dimension, d × w × h (mm): 128 × 272 × 355

Net weight (kg) : 9.8

The output stable sinusoidal supply voltage of 230V (220V, 240V) is perfect for powering all electrical energy receivers, and the built-in starting overload support system allows for powering receivers with high starting current, such as compressors in refrigerators and generators.
