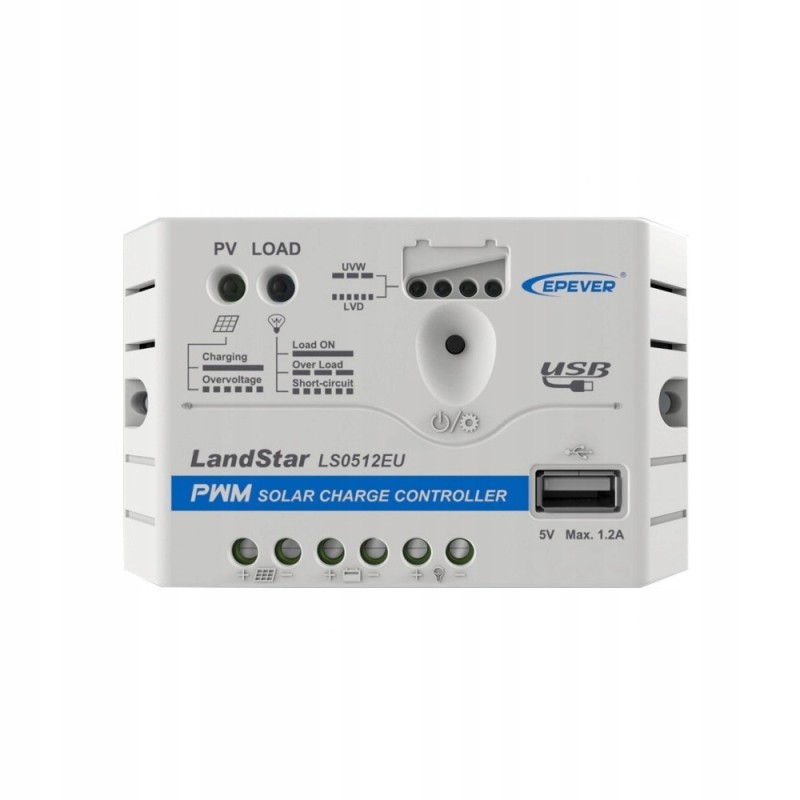

Charging controller ls0512eu 5a 12v usb

LS0512EU 5A USB charging controller* Product code: 4S-2523

The Epever LS0512EU 5A charging controller used in photovoltaic systems protects the battery against overcharging and deep discharge from receivers operating on 12V DC voltage.

The LS0512EU Charging Regulator is a device that was developed in accordance with with the latest available technology and has many unique features, such as:

Easy and quick change of battery type selection using a button.

USB output thanks to which it is possible to charge a smartphone, tablet, etc.

The Charging Controller automatically adjusts to the 12V system voltage .

Clear and readable display of the charge status.

Four battery charge levels.

Automatic adaptation to the ambient temperature.

Disconnection of the receiver when the voltage drops significantly.

Up to 2.5 mm2 clamp diameter for connection cables.

Full electronic protection against: overvoltages, short circuits, reverse polarity, overload, etc.

The device is dedicated to work with gel, lead acid and AGM batteries.

Technical Data **** Nominal system voltage: 12VDC

Max. PV circuit voltage: 30V

Rated charging current: 5A

Rated discharge current: 5A

Battery input voltage range: 8~16V

Low voltage disconnect voltage: 11.1V

Own power consumption: ›5mA(12V) , ›7mA (24V)

USB output port: 5VDC/1.2A

External dimensions [mm]: 109.7x65.5x20.8

Weight [kg]: 0.09

Housing: IP20

Mounting hole size : Φ,4.5

Terminal: 14AWG /2.5mm2

Operating temperature: -35℃ to +55℃

Humidity: ›95% NC
