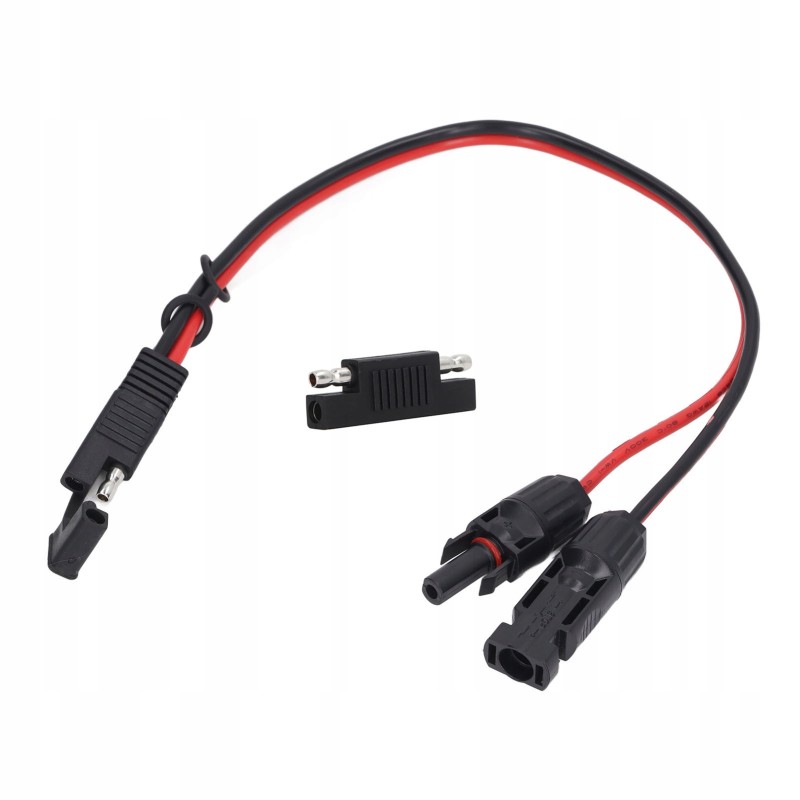

12awg copper solar panel connector cable

Feature:1. 12AWG Copper Wire: The cable is made of high quality 12AWG copper wire, which is very thick and durable. Power loss can be minimized by using 12AWG large diameter cable.

2. Dustproof and Waterproof: The connector comes with a dustproof and waterproof cap, which can prevent rain and dust drops and keep the SAE connector clean and dry when not in use.

3. Good heat resistance: Solar panel connecting cable has double PVC sheath, best insulation effect, heat resistance 80℃.

4. Easy to use: With this SAE adapter cable, the RV solar panel can be connected or disconnected quickly and easily, and the plug can be easily pulled out without any additional instruments.

5. Widely Used: Solar panel connector cables are applicable to most solar panel kits and are widely used in cars, motorcycles and outdoor solar devices.

Specification: Item Type: Solar Panel Connector Cable

Gross Weight: 74g/2.6oz

Sheath material: PVC

Number of cores: Single

Max. Wire outer diameter: 4mm/0.16in

Nominal cross-section: 3.3mm²

Length: 44cm/17.3in

Interface type: SAE

Temperature resistance: 80℃

Scope of application: line SAE connection line, solar panel adapter line, SAE 12AWG extension line

Contact material: All copper

Scope of application: power supply

Resistance: Low resistance

Power: ≤ 360 W

Safety voltage: ≤ 36V

Current: ≤ 30A

How to use:Use according to the appropriate voltage and current parameters.

Package List:1 x SAE Adapter 1 x Connection Cable
