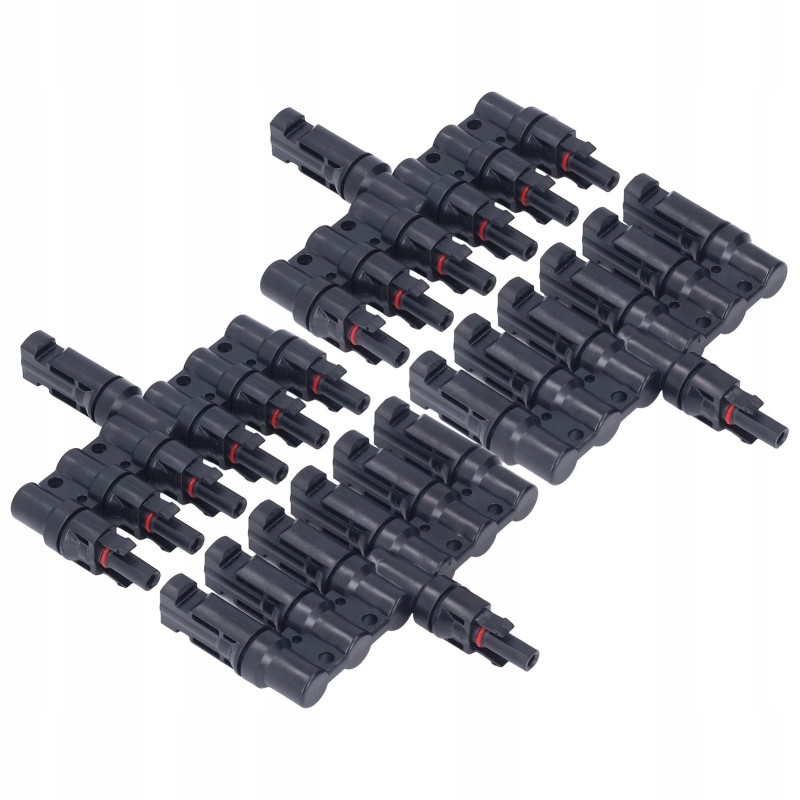

2 set 50a 1000v 1 to 6t branch connector

Feature:1. [PPO Insulation] Made of PPO shell material which is insulation, -40℃ ~ +135℃ High temperature resistance, wear resistance, long service life.

2. [Reusable] The solar splitter connector can be connected and disconnected repeatedly, reusable and compatible with photovoltaic connectors.

3. [Fireproof] The conductor material is tinned copper and the flame retardant grade is UL94-VO, which is safe and stable to use.

4. [Multi-point connection] The solar panel branch connector is multi-point connection, IP68 waterproof, built-in self-locking system, you can use it with confidence.

5. [Wide Application] 1 to 6 branch connector is widely used in many situations, especially for connecting solar panels to meet different needs.

Specification: Item type: branch connector

Material: PPO, copper

Application: panel connection solar

Model: MCH601

Rated voltage: 1000V

Description: Adapter male and female connectors are a set that is mostly used for parallel PV panels in the system

Insulation material: PPO material

Conductor material: Tinned copper

Ambient temperature: -40℃ ~ +90℃

Product temperature resistance: -40℃ ~ +135℃

Safety level: DCII

Waterproof grade: IP68

Contact resistance: ≤0.35mΩ

System connections: multi-point connection

Self-locking system: built-in

Extraction force: ≥50N

Insertion force: ≤50N

Rated current: 50A

Fire resistance class: UL94-VO

Weight: approx. 516 g / 18.2 ounces

Package list: 2 sets x photovoltaic branch connector (4 pieces)
