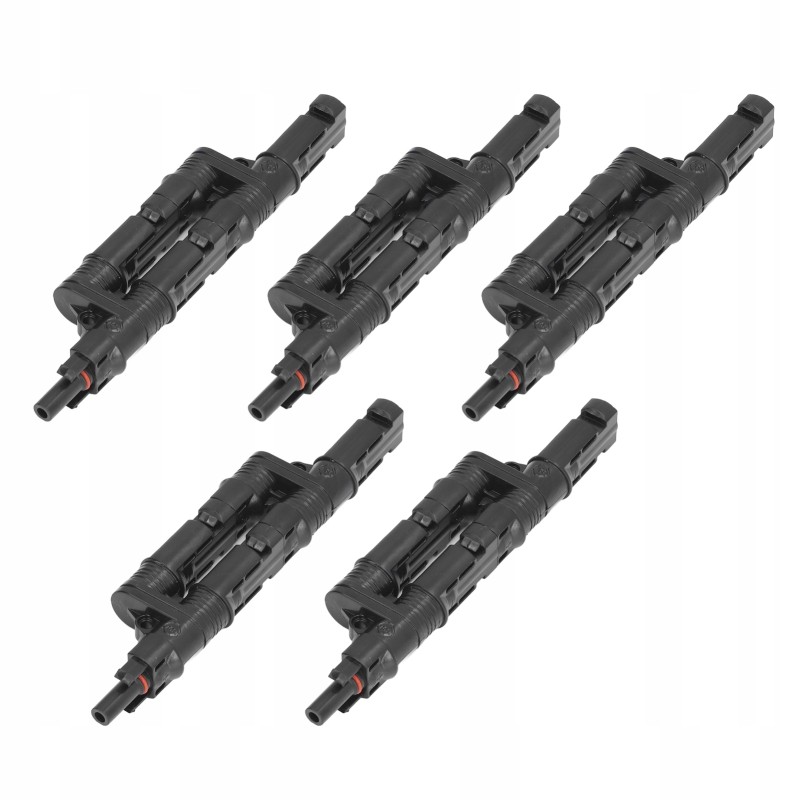

5 set 1000v solar panel y connectors

Feature:1. PPO material shell: high quality PPO material shell, high temperature resistance, wear resistance, flame retardancy and stain resistance.

2. Easy to connect and remove: Easy to connect and remove and compatible with photovoltaic connectors. Cycle multiple plugins, ensures cycle usage.

3. Male Female Connectors: With male female connectors for parallel solar panel connection between multiple solar panels. You can connect multiple solar panels together using splitter connectors.

4. High performance: rated voltage 1000V, ambient temperature -40°C ~ +90°C, product temperature -40°C ~ +135°C, waterproof rating IP68, multi-point connection, resistance rating UL94-VO.

5. Simple operation: Simple to operate, easy to use, easy to install and remove. Without any difficult requirements even if you use it for the first time.

Specification:Item type: Solar branch connectors

Weight: approx. 430g / 15.2oz

Scope of application: solar panel connection

Model: MCH201

Rated voltage: 1000V

Description: Adapter male and female connector is a set, mostly used for parallel PV board system

Insulation material: PPO material

Conductor material: tinned copper

Ambient temperature: -40°C ~ +90 °C

Product temperature: -40℃ ~ +135℃

Security level: DCII

Waterproof level: IP68

Contact resistance: ≤0.35 mΩ

Connection system: multi-point connection

Self-locking system: built-in

Pull force: ≥50N

Insertion force: ≤50N

Rated current: 50A

Flame retardant class: UL94-VO

Package list: 5 set x photovoltaic connector (10pcs)
