2 sets of 1500v PV connectors IP68 battery

Feature:1. Anti UV: Built-in 1500V PV fuse, 1500V photovoltaic connectors have excellent anti-aging and anti-UV properties, very durable and long-lasting.

2. IP68 Waterproof: The photovoltaic solar connector kit has good waterproof performance, and the waterproof level reaches IP68.

3. Scope of application: Solar photovoltaic connectors are suitable for connecting solar panels, compatible with solar photovoltaic connectors.

4. PPO Coating: The built-in Solar Fuse Connector Housing is made of PPO, which is heat-resistant, abrasion-resistant, flame-retardant and stain-resistant.

5. Easy to connect and disconnect: The waterproof solar fuse connector can be easily connected and disconnected. Multiple insertion and removal cycles to ensure cyclic use.

Specification:Item type: solar photovoltaic connector kit

material: PPO plastic body, copper and tin plated hardware

Model: MC 1510F

Rated voltage: 1500V

Description: Built-in 1500V PV fuse

Absolutely green material: PPO material

Conductor material: Tinned copper

Ambient temperature: -40℃~90℃

Product temperature resistance: -40℃~135℃

Level security: DCII

Waterproof class: IP68

Contact resistance: ≤0.35mΩ

Connection system: multi-point connection

Self-locking system: built-in

Pull-out force: ≥50N

Insertion force: ≤50N

Resistance level: UL94 VO

Scope of application: connection to solar panel

Weight: Approx. 115g / 4.1oz

How to use: Built-in zippers on both sides of the connector for easy insertion and removal.

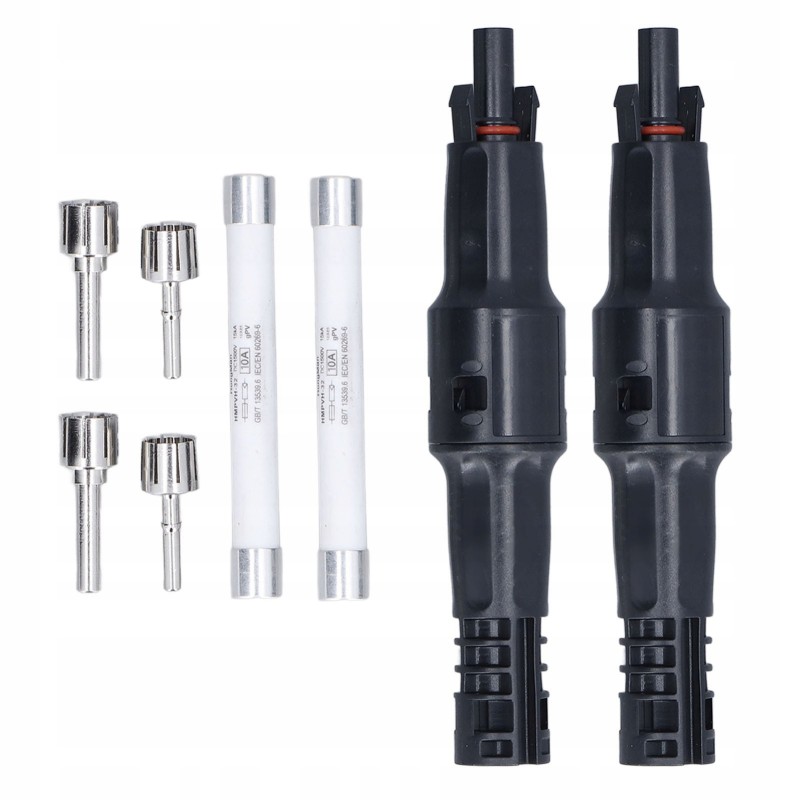

Package List: 2 x Photovoltaic Connector Set (8 Accessories)
