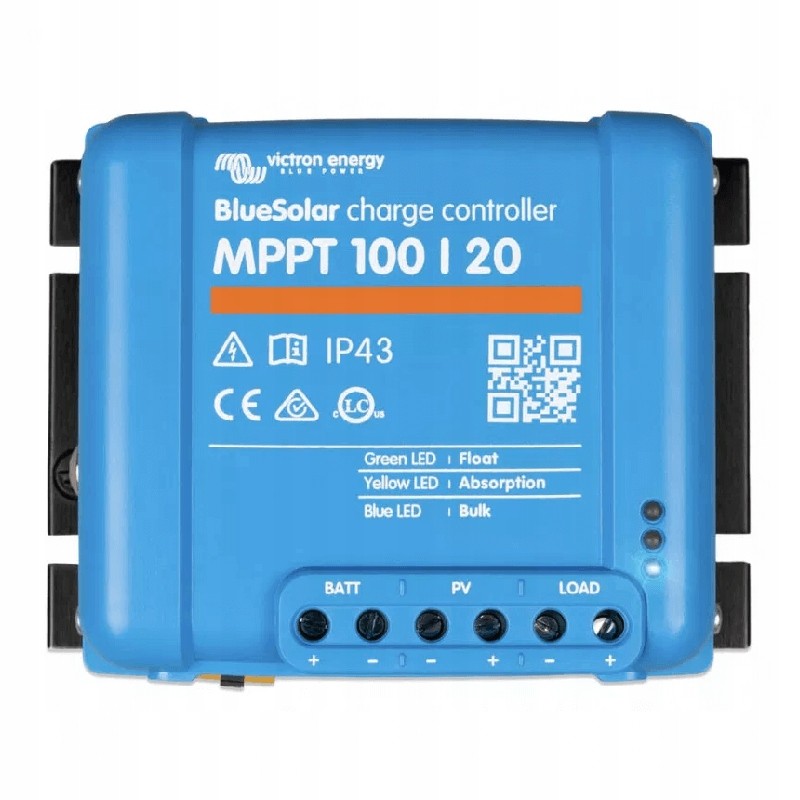

SMART SOLAR VICTRON ENERGY 100/20 REGULATOR The Blue Solar MPPT 100V/20A charging controller is an advanced device designed for effective battery charging in photovoltaic systems. The input voltage is a maximum of 100V, which allows the connection of high voltage photovoltaic panels. The rated charging current is 20A, which allows for effective and fast charging of batteries. The regulator supports 12V and 24V battery voltages, and automatic voltage recognition allows for convenient adjustment to current conditions.
Blue Solar has an advanced MPPT algorithm that constantly tracks the maximum power delivered by photovoltaic panels and adjusts the charging voltage and current to optimal values. Thanks to this, higher charging efficiency can be achieved and solar energy is fully utilized. The device also offers many other functions and protections, such as protection against: short circuit, reverse polarity, overload and overheating. The controller is equipped with an advanced management and monitoring system that allows you to monitor charging performance and status. The regulator is easy to install and use, and its compact design saves space. Moreover, it meets safety standards and has high energy efficiency.
CHARACTERISTIC FEATURES: Brand: Victron Energy
MPPT technology
Light weight
Manufacturer code: SCC1100020160R
Battery voltage: 12/24/48V
Operating temperature: -30 to +60 °C (full rated power up to 40 °C)
Peak efficiency: 98%
Maximum PV open circuit voltage: 100 V
Dimensions: 100 x 113 x 60 mm
