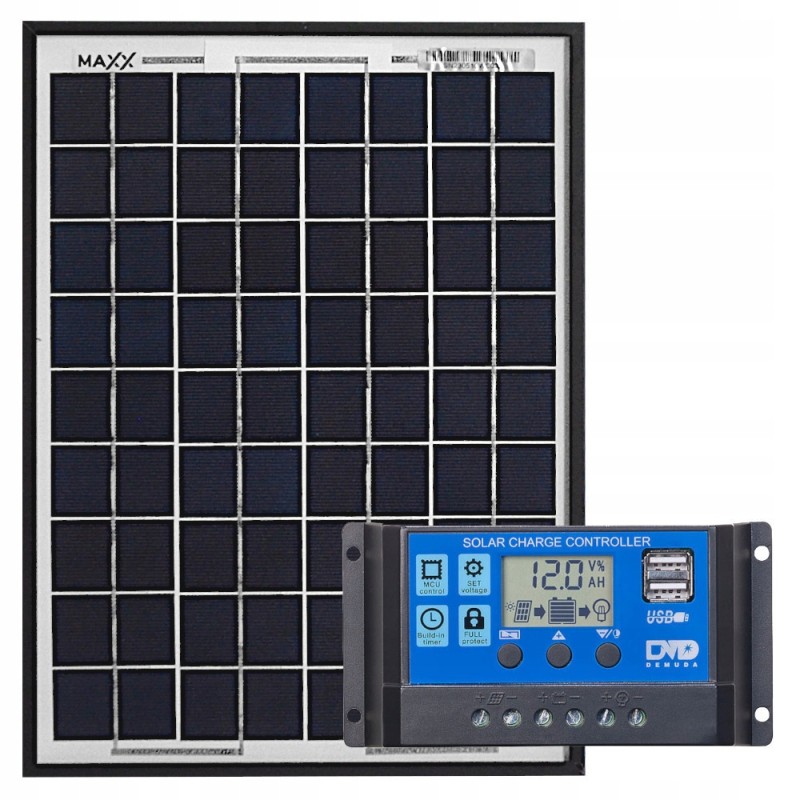

Solar panel 10w 2xUSB

Solar kit 10W 2xUSB* Product code: 36454

The Maxx 10W polycrystalline solar panel, complete with a PWM 10A charging controller, is a reliable and effective solution for obtaining solar energy, ideal for smaller solar installations. This compact panel, made of polycrystalline cells, is characterized by a solid construction and ensures long-lasting performance. The PWM 10A charge regulator plays a key role in protecting batteries against excessive charging and deep discharge. Its use significantly extends the battery life, which makes it an essential element of every solar micro-installation. Thanks to the regulator, the solar system becomes safer and more efficient.

The set includes:* 1x Maxx 10W polycrystalline solar panel

* 1x PWM charging controller 10A 12V/24V 2xUSB

Maxx 10W polycrystalline solar panel Cells: Polycrystalline

Peak power: 10W

Power tolerance: +3%

Max power voltage [Vmp]: 18 V

Max current [Imp]: 0.56 A

No-load voltage [Voc]: 21.6 V

Short circuit current [Isc]: 0.62 A

Length: 33 cm

Width: 24 cm

Depth: 1.7 cm

Weight: 1.1 kg

Frame: Anodized black aluminum

Glass: Tempered glass 3.2 mm

PWM charge controller 10A 12V/24V 2xUSB Discharge protection: 11.1V / 22.2V

Load restoration point: 12.5V / 25V

Maximum input voltage (from panels): 48V

Waterproof class: IP30

Max . charging current (panel current): 10A

Max. load current: 10A

Operating voltage: 12V 24V DC

Own consumption: ‹6mA

Operating temperature: -20℃ to +60℃

Dimensions: 97 x 66 x 25mm (length/width/height)

Connectors: 2x USB

Charging compensation due to temperature: -30.0mV/1 degree C/2V
