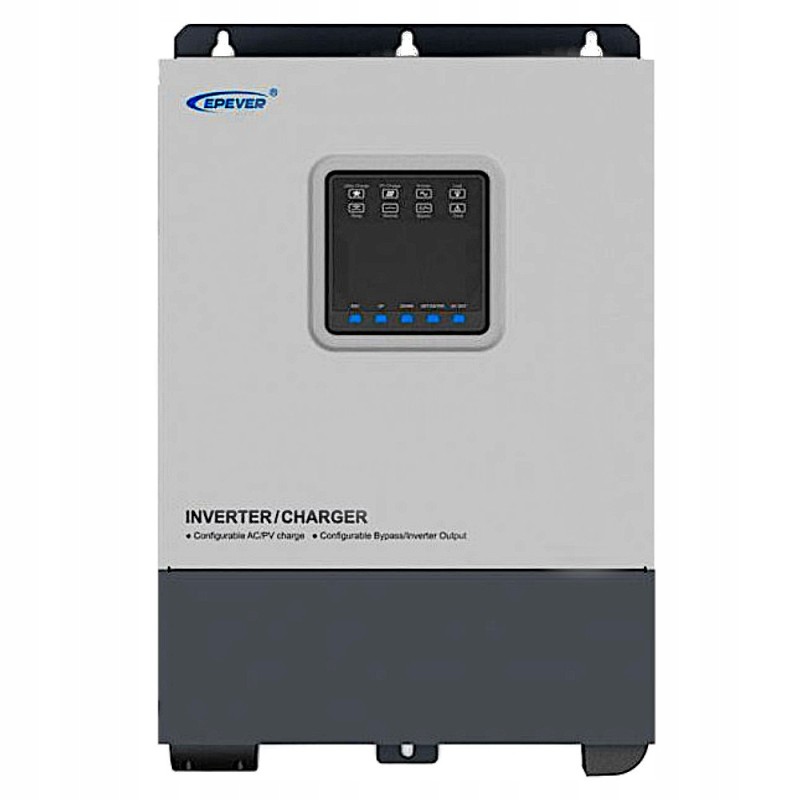

MPPT solar hybrid inverter 48v 230v 5000w

Off Grid Epever MPPT Hybrid Inverter 48V 230V 5000W* Product code: 4S-3349

The UP5000 hybrid inverter is an inverter charger that supports various energy management modes for solar/grid/generator charging and power supply from the power grid/AC load inverter.

To maximize the use of solar energy, users can choose energy sources according to actual needs and flexibly treat utilities as a supplement. It aims to provide users with high-quality, stable and reliable electricity.

Technical Data **** Nominal battery voltage: 48VDC

Battery input voltage range: 21.6～32VDC

Continuous output power: 5000W

Overload (5s): 8000W

Output voltage range: 220VAC±5%,230VAC(-10%～+5%)

Output frequency: 50/60±0.1 Hz

Output mode: Single-phase

Output wave: Pure sine wave

Maximum efficiency: 95%

Input voltage range: 160VAC ～ 280VAC （operating voltage range), 170VAC ~ 270VAC (initial voltage range)

MPPT voltage range: 80V - 350V

Max. Media charging current: 60A

Min. Open circuit voltage PV: 120V

Max. PV Open Circuit Voltage: 500V (Minimum Temperature), 440V (25℃)

Max. PV input power: 4000W

Max.PV charging current: 80A

Compatibility with batteries: AGM, Gel, Liquid, Lithium

Tracking efficiency: ›99.5%

Charging conversion efficiency: 98%

Own consumption: ›1 .2A

Protection grade: IP30

Working environment temperature: -20℃～50℃（full input and output without derating）

Dimension: 642.5x381.6x149mm

Mounting dimension: 230mm

Mounting hole size: Φ.8mm

Net weight: 19kg
