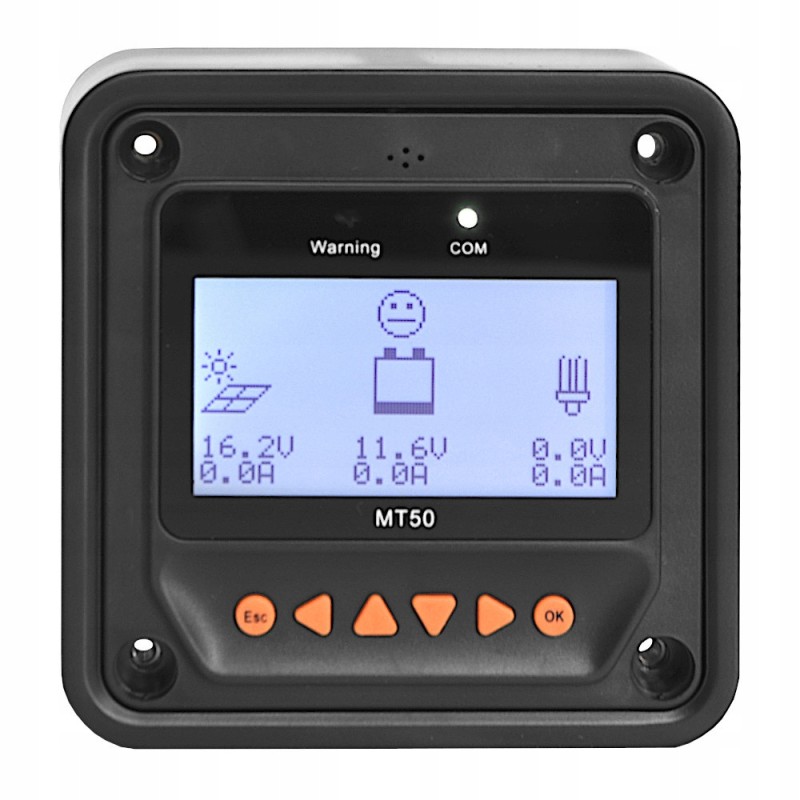

MPPT tracer control panel with LCD display

MT50 Control Panel - meter with LCD display* Product code: 4S-2723

MT50 Monitor - digital meter with LCD display. Indicates system information, detected errors and current operating parameters.

The panel is designed to work with MPPT Tracer xxxxA, xxxxAN, XTRA and LSxxxxB controllers and supports both the latest communication protocol and advanced voltage management technologies in supported controllers.

The product is characterized by many useful features functions:

Automatic identification and display of the type, model and appropriate operating parameters of supported controllers.

Real-time display of operating data and operating status of the connected controller and their presentation in digital form, graphic and text symbols on a large and clear LCD screen.

Direct, convenient and fast operation using six function and navigation buttons.

Both data and power are transmitted via one cable - no need to connect an external power supply.

Real-time data monitoring, remote switching of controller load and data viewing, and parameter modification controller, downloads parameters controlling the operation of receivers.

Real-time display of information about system failures and their signaling with an acoustic alarm.

Longer communication range thanks to the RS485 interface.

Technical data **** Consumption with backlight and sound on: ‹ 65 mA

Consumption with backlight on: ‹23 mA

Consumption with backlight off: ‹15 mA

Ambient temperature: -20°C / +70°C

Panel dimensions: 98 x 98 mm

Frame dimensions: 114 x 114 mm

Connection socket: RJ45

Cable length: Standard - 2 m

Weight: ~ 0.23 kg
