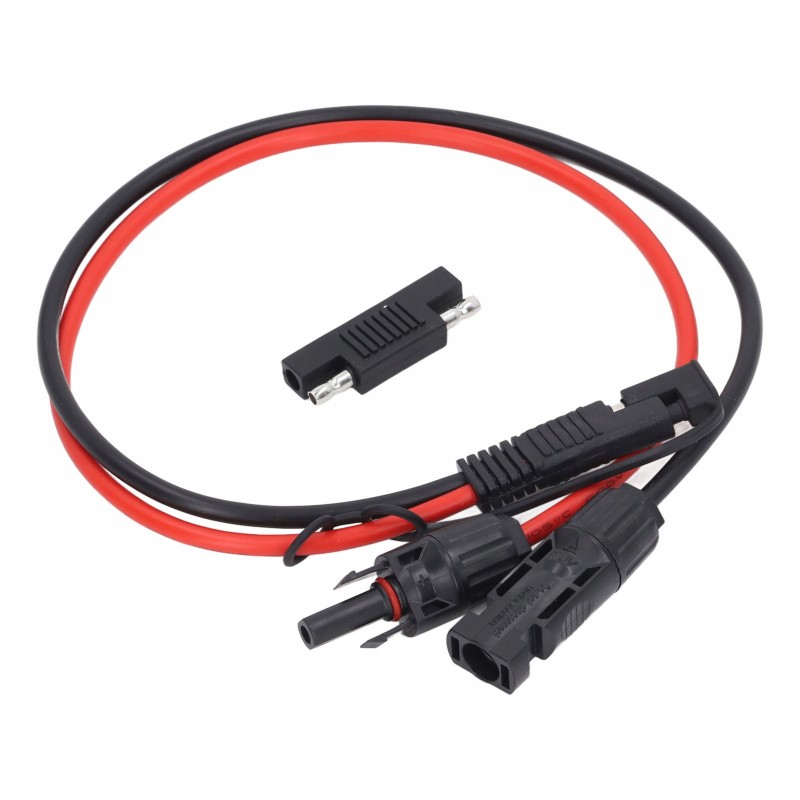

Solar panel to SAE PV connector adapter cable

Feature:1. Low Power Loss: The cable is made of premium 10AWG copper wire, which is very thick and durable, using 10AWG large diameter cable can minimize power loss.

2. Dustproof and Waterproof Cover: The SAE connector is equipped with a dustproof and waterproof cover, which can prevent rain and dust drops and keep the SAE connector clean and dry when not in use.

3. Good insulation effect: This PV connecting cable has double-layer PVC sheath, best insulation effect, heat resistance 105°C.

4. Easy to use: Charge your portable generator with this SAE adapter, quickly and easily connect or disconnect your RV solar panel and easily pull out the plug without any additional instruments.

5. Widely Used: This solar power connector cable is suitable for most solar panel kits, widely used in cars, motorcycles and outdoor solar devices.

Specification: Item Type: Solar Panel to SAE Adapter Cable

Sheath Material: PVC

Gross Weight: 105g / 3.7oz

Number of cores: single

Maximum wire outside diameter: approx. 5.1mm / 0.2in

Nominal cross section: 5.3 (mm2)

Length: approx. 0.60m / 23.6 inch

Product Specifications: Solar to SAE 1015 10awg 0.60m Connection Cable

Interface Type: SAE

Temperature Resistance: 105℃

Scope of Application: PV Connector to SAE Solar Connector Adapter

Material contacts: all copper

Scope of application: power supply

Power: ≤360 W

Safety voltage: ≤36V

Current: ≤30A

Width: about 16 mm / 0.6 inch

Thickness: about 9 mm / 0.4 inch

Exposed male head: about 9mm/0.4 inch

How to use:Use according to the appropriate voltage and current parameters

Package list: 1 x SAE adapter 1 x connection cable
