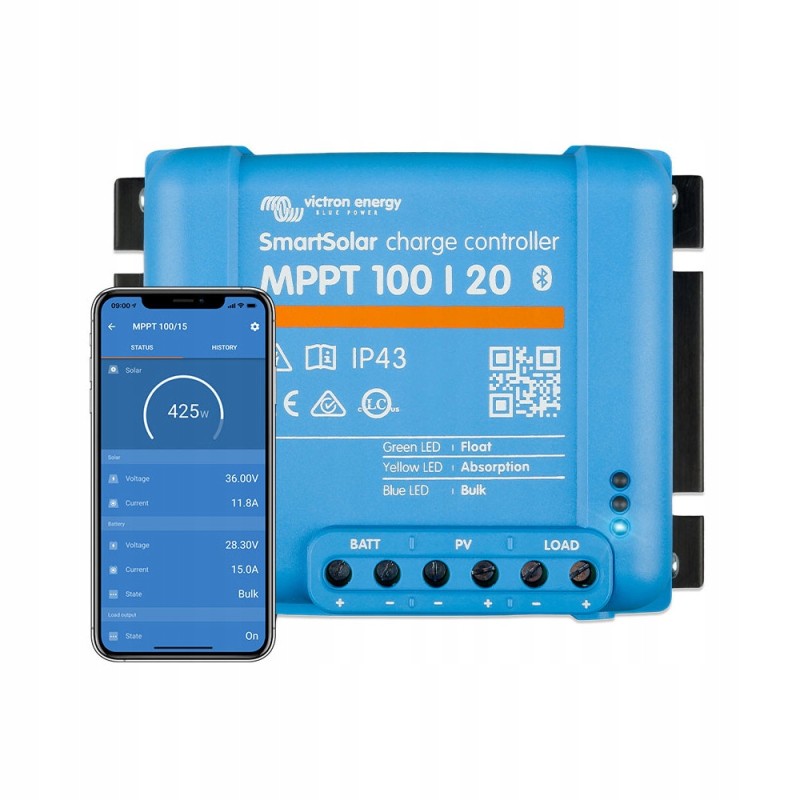

Smart 100V/20A BlueTooth charging controller* Product code: ST-2437

Charging controller 100V 20A. Voltage 12 or 24V selected automatically. The BlueTooth interface allows programming and monitoring via smartphone.

Technical Data **** Battery voltage: 12/24/48 V (auto)

Rated charging current: 20 A

Nominal PV power, 12 V: 290 W

Nominal PV power, 24V: 580 W

Nominal PV power, 48V: 1160 W

Max. PV short-circuit current: 20 A

Automatic load disconnection: Yes

Max. PV open circuit voltage: 100 V

Peak efficiency: 98 %

Stand-alone consumption - load: 12 V: 26 mA 24V: 20 mA 48V: 19 mA

Stand-alone consumption - load relief: 12 V: 10 mA 24V: 8 mA 48V: 7 mA

Absorption charging voltage: 14.4V/28.8V/57.6V (adjustable)

Float charging voltage: 13.8V/27.6V/55.2V (adjustable) )

Charging algorithm: Multi-stage adaptive

Temperature compensation: -16 mV / °C or -32 mV / °C

Max. continuous load current: 20A / 20A / 1A

Low voltage load disconnection: 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Algorithm Battery Life

Low Voltage Load Reconnection: 13.1V/26.2V/52.4V or 14V/28V/56V or Battery Life Algorithm

Protection: Output Short Circuit/Over Temperature

Operating Temperature : -30 to +60 °C (full rated power up to 40 °C)

Humidity: 95%, non-condensing

Data communication port: VE.Direct (see data communication white paper on our website)

Color: Blue (RAL 5012)

Power terminals: 6 mm² / AWG10

Protection category: IP43 (electronic components), IP22 (connection area)

Weight: 0.65 kg

Dimensions (hxwxd): 100 x 113 x 60 mm

Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
