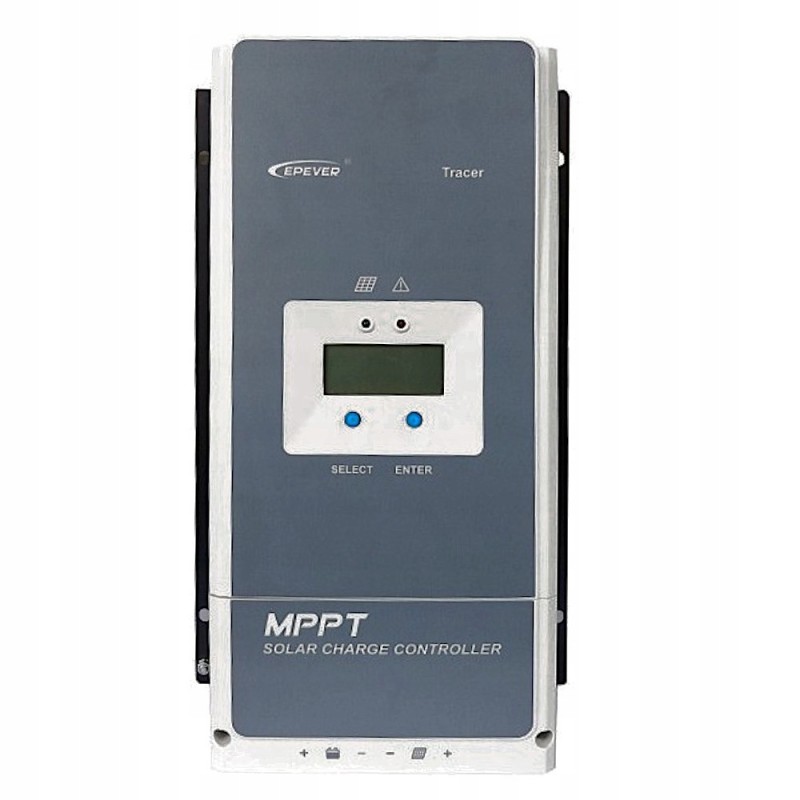

MPPT tracer 8420an 80a landing controller

Tracer 12V/24V/36V/48V 80A MPPT Charge Controller* Product code: 4S-3080

Tracer AN series controller, based on multi-phase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core CPU architecture.

MSRT can guarantee very high conversion efficiency at any charging power, which significantly improves the efficiency of the solar system.

Advanced MPPT control algorithm minimizes the maximum power loss time. Provides tracking efficiency, appropriate speed, and high conversion efficiency under high or low power to ensure the highest possible module efficiency in any situation.

Tracer AN can quickly track the maximum power point (MPP) of PV panels to obtain maximum energy from panel.

The power and charging current limitation function and the automatic power reduction function fully ensure the stability of operation with oversized photovoltaic modules and operate in a high-temperature environment.

Technical Data **** Nominal system voltage: 12V / 24V / 36V / 48V

Charging rated current: 80A

Discharge rated current: 80A

Battery input voltage range: 8V～68V

Max. PV open circuit voltage: 200V

MPP voltage range: VBAT+2V～144V

Max. PV input power: 1000W/12V, 2000W/24V, 3000W/36V, 4000W/48V

Own power consumption: 98mA/12V,60mA/24V,50mA/36V,46mA/48V

Temperature compensation coefficient: -3mV/° C/2V(Default Value)

Communication: RS485(RJ45 interface)

Ground: Negative Ground

LCD Temperature Range: -20oC～+70oC

Operating Environment, Temperature Range: -25oC～+60oC

Storage Temperature : -30oC～+85oC

Humidity range: 5% to 95% (NZ)

Housing: IP20

Dimensions: 394mm x240mm x 134mm

Mounting hole diameter: Φ.7

Weight: 6.1kg

Product Images
