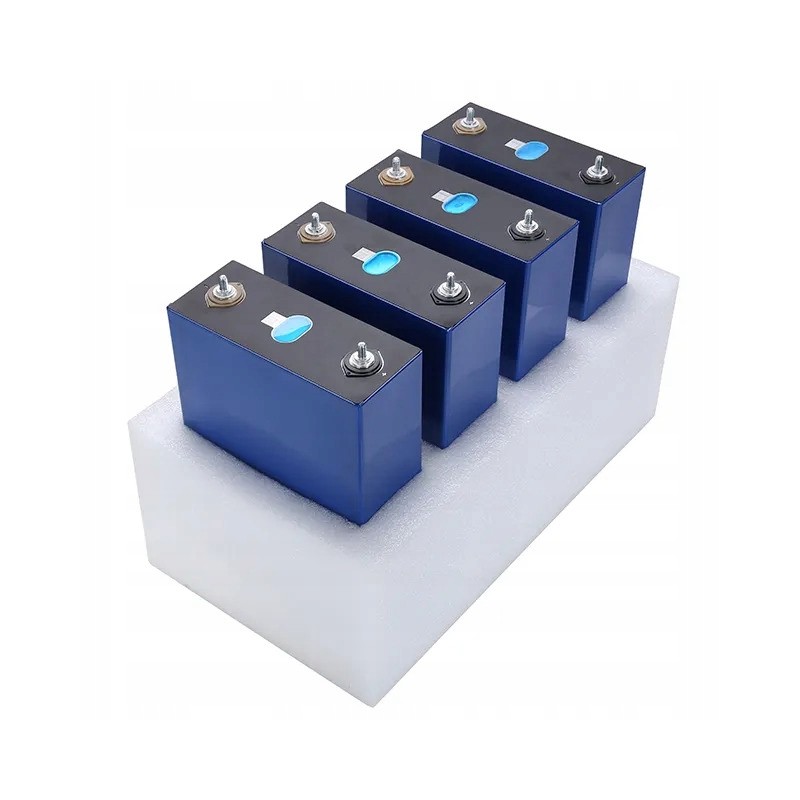

Lifepo4 cell 280ah 3 2v set of 4 pcs

LiFePO4 cell 280Ah 3.2VA

The given price is for a set of 4 cells

Download in the "Additional information" section:

BMS selection guide

LiFePO4 Grade A cell

Top-class, manufacturer-selected LiFePO4 cells (Grade A), intended for building batteries (campers, boats, large vehicles), energy storage facilities, and as an emergency energy source.

Grade A selection means the batteries can be used in any application, including vehicles, and their actual performance exceeds those stated in the specifications. These types of batteries are rarely available for retail sale. In most cases they are used in industry. It is true that some suppliers describe their auctions in this way, but most often the repeated selection is made by them, from batteries classified by the manufacturer as Grade B.

We guarantee that the cells we sell, marked as Grade A, are selected by the manufacturer. The use of these cells makes it extremely easy to build an energy bank. All electrical connections between the batteries are included with the cell.

Note:

According to the manufacturer's recommendations, LiFePO4 batteries can be compressed together with a force of up to 300 kg to achieve full durability and the assumed parameters. The easiest way to do this is to screw the batteries together between rigid plates or use clamps.

Cell type LiFePO4

Capacity 280Ah

Cell manufacturer Huaxu New Energy Co

Lifespan ≥6000 cycles at 0.5C/0.5C - for capacity >.80%

Max .continuous discharge current 280A

Voltage 3.2V

Maximum charging voltage 3.65V

Minimum operating voltage 2.5V

Maximum discharge current (30s) 460A

Temperature range discharge -20 ℃～55 ℃

Temperature range charging 0 ℃～55 ℃

Height 204mm

Width 173mm

Thickness 71mm

Weight 5.4kg
