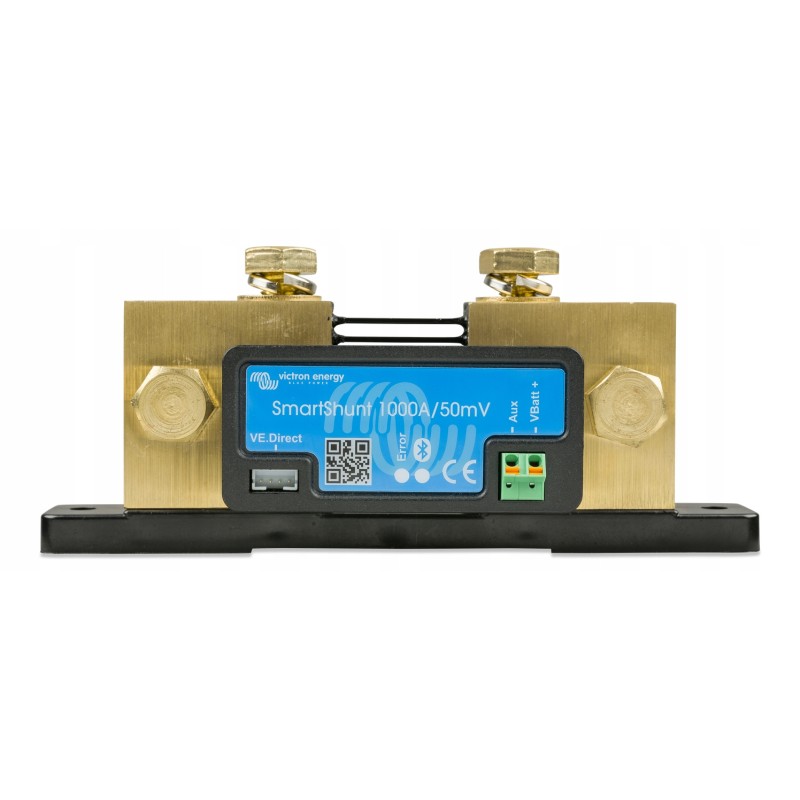

Victron energy smartshunt 1000a 50mv smart battery shunt

Victron Energy SmartShunt 1000A / 50mV Smart Battery Shunt The SmartShunt SmartShunt is a one-piece battery monitor, but without a display. Your mobile phone acts as the display. SmartShunt connects via Bluetooth to the VictronConnect application on your phone (or tablet), so you can conveniently read all monitored battery parameters, i.e. charge status, remaining operating time, historical data, and more.

SmartShunt can also be connected to the device GX, which can also be read. The SmartShunt connection is made with a VE.Direct cable.

SmartShunt is a good alternative to the BMV battery monitor, especially in systems where battery monitoring is necessary, but excessive cables would create unnecessary clutter.

SmartShunt is equipped with a Bluetooth system, VE.Direct port and a socket that can be used to: monitor a second battery, monitor an intermediate point or connect a temperature sensor.

Technical data:

Supply voltage range: 6.5 - 70V DC

Current consumption: <, 1mA

Supply voltage range - second battery: 6.5 - 95V DC

Battery capacity: 1 - 9999Ah

Operating temperature range: -40 +50°C

Temperature measurement range: -20 +50°C

VE.Direct communication port: Yes

Dimensions: 46 x 120 x 54mm

Accuracy:

Current: ± 0.01A

Voltage: ± 0.01V

Ampere-hours: ± 0.01Ah

Charge status (0 - 100%): ± 0.1%

Time -to-go: ± 1min

Temperature (with optional temperature sensor connected): ± 1°C

Current measurement accuracy: ± 0.4%

Voltage measurement accuracy: ± 0.3%

Offset: less than 20 / 40 / 80 mA

In the set:

Victron Energy SmartShunt 1000A / 50mV intelligent battery shunt

2x 1.5m cable with 1A fuse
