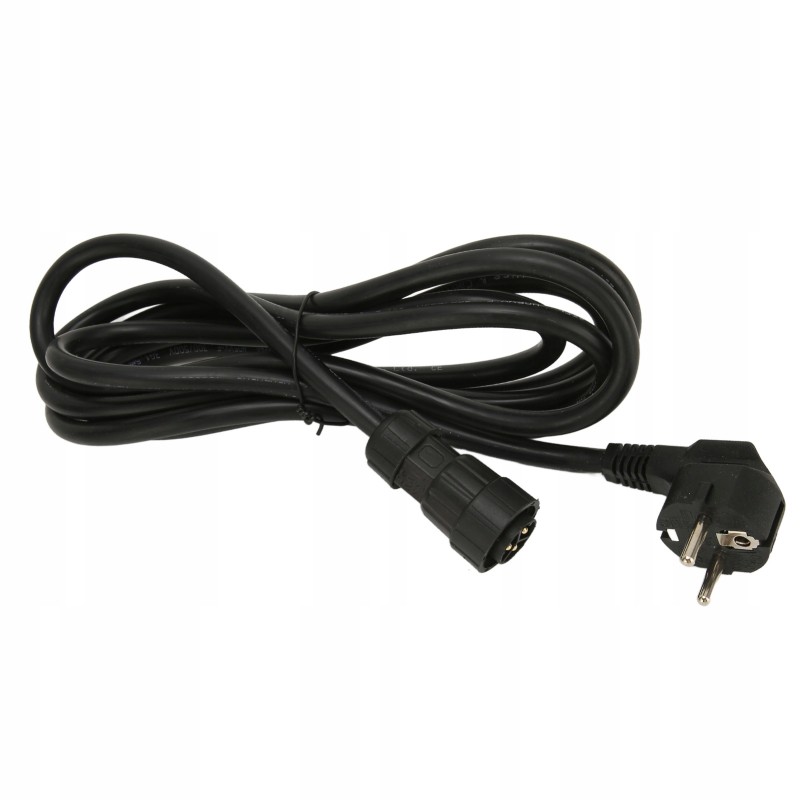

AC cable 10ft AC solar system power cord

Feature:

1. Reliable use: AC cable ensures low power consumption of the solar panel system, and the cables have high working efficiency.

2. Intelligent design: By using high-strength waterproof ring, the photovoltaic cable has excellent dust resistance.

3. Product material: Made of copper and PVC, the power cable is soft, thick, sun-resistant and long-lasting.

4. Applicable models: AC power cord is suitable for WVC 600, WVC 700, WVC 1200, WVC 1400, WVC 1600, widely used in power generation systems, solar energy.

5. Easy to install: 1.5mm solar cable? it is light and compact, making it very easy to install. Cable length is approximately 3 meters/10 feet.

10FT AC CABLE AC SOLAR SYSTEM POWER CORD

Specification:

Item Type: AC Cable

Material: Copper, PVC

Plug: EU Plug

Voltage: 220V

Color: As Pictures Shown

Weight: Approx. 400g / 14.1oz

Applicable models: WVC 600, WVC 700, WVC 1200, WVC 1400, WVC 1600

Product size: Approx. Cable length 3 meters/10 feet

Size According to: 3G1.5 mm?

Conductor:

Outer diameter (mm): Approx. 1.4 mm / 0.06 inch

Structure (mm?): According to GB/T3956-2008

Standard Type 5 Flexible Cable

Insulation:

Average Thickness (mm): Approx. 0.7mm / 0.03in

Outer Diameter (mm): Approx. 2.8 mm / 0.1 inch

Jacket:

Average Thickness (mm): Approx. 0.9mm / 0.04in

Outer Diameter (mm): Approx. 8.8 mm / 0.3 inch

Electrical performance:

The resistance of the wire at 20�C is less than: ? 13.3 ?/km

Applications: used in power generation systems, solar energy

. AC CABLE 10FT AC POWER CORD SOLAR SYSTEM

Package List:

1 x Cable

Can be directly connected and used according to the appropriate voltage.

AC CABLE 10FT AC POWER CORD SOLAR SYSTEM
