Solar water heating set MPPT 3000W 6xPV power

set of ready-made elements for starting a photovoltaic system for heating water.

Power 6x 440W = 2640Wp, which allows you to really heat the water in the tank

The system is very easy to connect, you can quickly start operating this ecological and money-saving set.

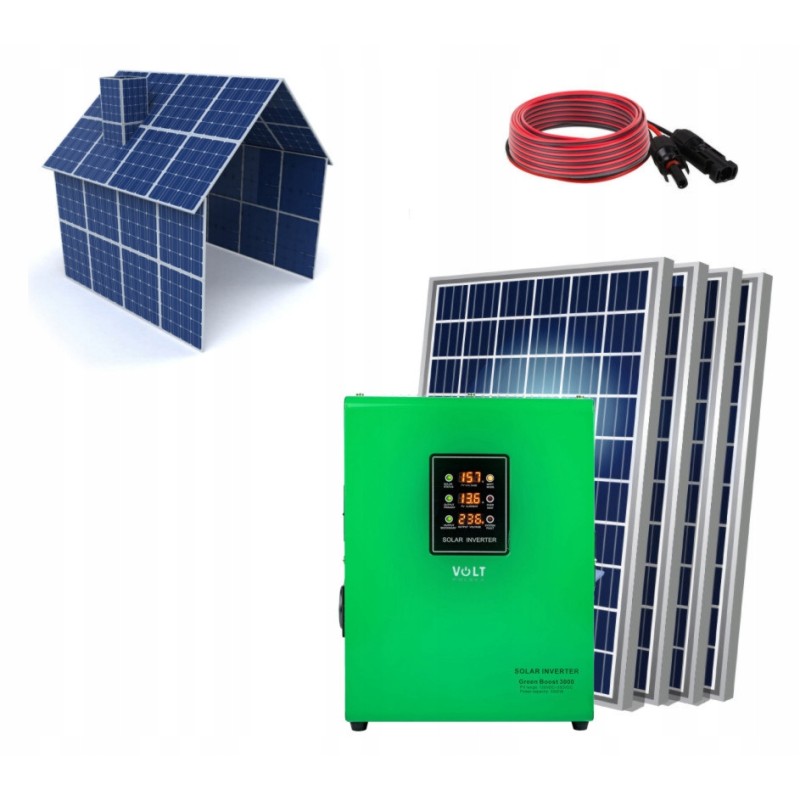

The set consists of :

1x GREEN BOOST MPPT-3000 inverter converter

6x 440W Monocrystalline photovoltaic module

2x 15m solar cable

2x Set of MC4 connectors for preparing the connection of devices

Description of the inverter:

The solar converter for heating water, the GREEN BOOST MPPT-3000 boiler is used for power supply heating devices directly from PV solar panels. The system is very simple and functional. 4 to 9 classic PV panels (250W - 400W) are required, which will be connected in series and their total voltage will be in the range from 120 V to 350 V.

How does the GREEN BOOST MPPT 3000 converter work?

Direct current produced on panels, which is not suitable for direct power supply of heating devices, is converted in the converter into alternating current, which can be used to power heating devices.

What devices does the GREEN BOOST MPPT solar converter power?

Electric boilers

Radiators

Electric heaters

Electric mats

Underfloor heating

Technical data of the panels:

Maximum power Pmax: 440W

No-load voltage Voc: 44.85V

Short-circuit current Isc: 12.5A

Maximum power voltage: 37.34V

Maximum power intensity: 11 .79A

Power tolerance: 0-+5%

Efficiency: 20.5%

Temperature parameters**

Temperature current indicator Isc: +0.04%/◦C

Temperature voltage indicator Voc: -0 .25%/◦C

Temperature power index Pmax: -0.34%/◦C

Mechanical parameters

Dimensions: 1894x1096x30mm

Weight: 22.5 kg

Cells: Monocrystalline

Frame: Anodized aluminum

Glass: Highly transparent tempered glass
