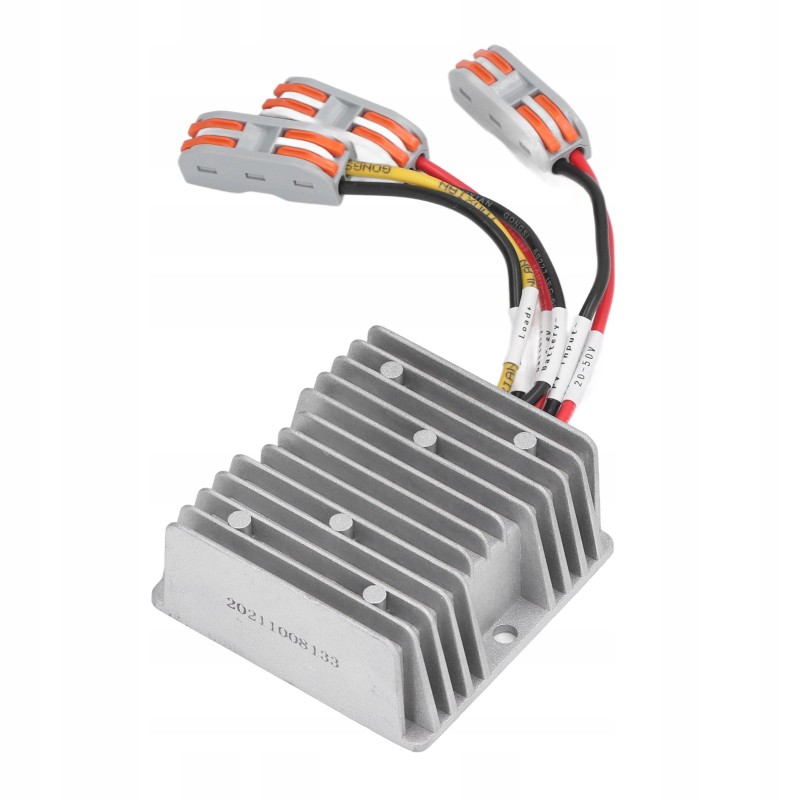

300w 20a solar panel controller mppt

Feature:1. 300W 20A: The MPPT solar controller uses solar maximum power point tracking (MPPT) technology. Output power 300W, load discharge current 20A.

2. High Efficiency: The photovoltaic solar controller adopts the structure of high efficiency synchronous rectifier circuit. Performance update, performance improvement.

3. Multiple protections: short circuit protection, overheating protection, solar input undervoltage protection, battery undervoltage protection, load port short circuit protection.

4. Applications: photosensitive solar controller, no output during the day, load output at night, suitable for street lighting. Energy saving and environmental protection.

5. Installation

Specification:Item Type:MPPT Solar Controller

Material: Plastic

Gross Weight: 306g/10.8oz

Product Size: 74x74x32mm/2.9x2.9x1.3in

Load Discharge Current: 20A

Output power: 300W

Light tubes: no output during the day, load output at night, suitable for street lamps

Efficiency: ≥95%

Noise: application: solar street light controller scene

No load loss: 30MA

Voltage regulation rate: 1%

Load regulation: 5%

Full load ripple: 400mV

No load ripple: 100mV

Discharge module input voltage: Equal to battery voltage

Load output voltage: equal to battery voltage

Current load output: 30A (max. 32A)

Static power consumption: 12mA

Load output mode: photosensitive

Battery terminal short circuit protection: Yes

Load short circuit protection Yes

Temperature protection: Yes

Protection class : IP67

Operating Temperature: -40℃ - +65℃

Package List: 1 x Solar Charge Controller
