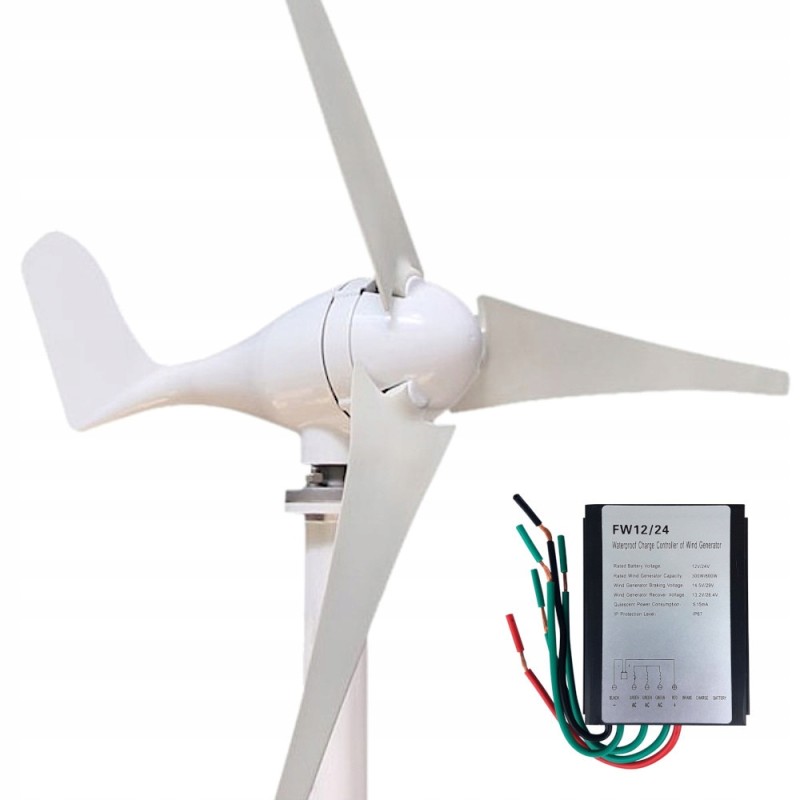

Wind generator wind turbine 300w 24v

FW 300W 24V wind turbineProduct code: 20743

Low starting speed, high wind energy utilization. Easy installation, optional pipe or flange connection.

Optimized aerodynamic shape and blade structure that increases wind utilization and annual energy production.

Cast aluminum alloy body, with 2 pivot bearings, so it can withstand stronger winds and operate more safely.

The turbine has built-in magnetic brake, which effectively reduces the torque at the limit wind speed and influences the optimal operation of the generator.

The set includes:* 1x Wind turbine 300W 24V

* 1x Wind regulator 12V/24V 300W/600W

Wind turbine 300W 24V Model: NE- 300S

Rated power: 300W

Maximum power: 330W

Rated voltage: 24V AC

Starting speed: 2.5m/s

Rated wind speed: 11m/s

Wind limit speed: 45m/s

Diameter rotor: 135 cm

Net weight: 7.5 kg

Number of blades: 3

Mast diameter: 4 - 5.5 cm

Blade material: nylon

Generator housing: aluminum alloy

Operating temperature: -40 °C - 80°C

12V/24V 300W/600W wind controller Maximum power supported by the controller: 300W / 600W

Battery rated voltage: 12V / 24V

Overcharge protection: 14.5V / 29V

Battery cut-off voltage: 13.2V / 26.4V

Protection : IP67

Static power consumption: ‹15mA

Three diodes: battery / charging / brake

Compatibility with batteries: Liquid, AGM, Gel

Five cables: 2x battery + 3x turbine

Dimensions: 10 x 8.7 x 2.8 cm

Weight: 350g

Turbine power depending on wind force

Wind power is of great importance when producing electricity from wind turbines. Select the windiest places for wind generators.

3 m/s (10 km/h): 10% of power

5 m/s (18 km/h): 20% of power

7 m/s (25 km/ h): 60% power

11 m/s (40 km/h): 100% power
