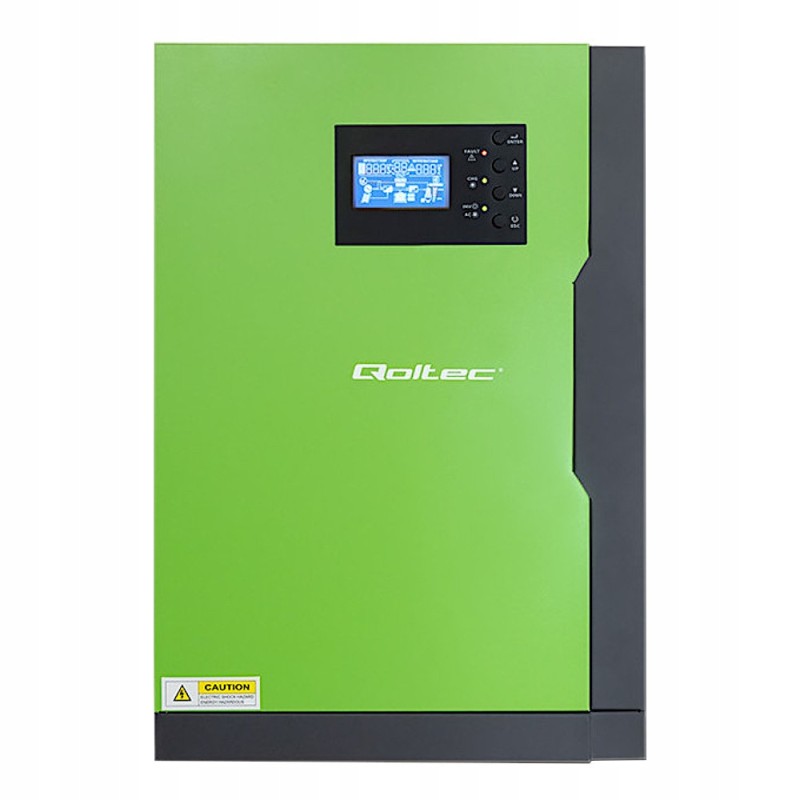

Solar hybrid inverter 24v 230v 3500w

Off Grid Hybrid Inverter Qoltec 24V 3500W* Product code: QL-53886

The off-grid hybrid inverter connects a photovoltaic installation, energy storage and the power grid. During the day, it charges the energy storage from photovoltaic panels. The energy storage supplies home appliances from the energy stored during the day, and after the battery is discharged, it takes energy from the grid.

The inverter operates in off-grid mode, using excess solar energy to power the receivers and charge the battery. In the event of a failure, electricity is taken from the photovoltaic installation to the energy storage and can safely and uninterruptedly ensure the continuity of operation of our devices.

Technical Data **** Type:: Off-grid

Rated power: 3500VA/3500W

Peak power: 6000VA

Display: LCD

Charging type: MPPT

MPPT operating voltage range: 120 ~ 450VDC

Battery overcharge protection: 33 VDC

Storage temperature: -15˚C to +60˚C

Maximum charging current battery with PV: 100 A

Battery voltage: 24 VDC

Maximum charging current:: 100 A

Cooling system: 2 x fan

Maximum power of photovoltaic panel: 5000 W

Number of phases: Single-phase

Maximum circuit voltage open photovoltaic panel:: 500 VDC

Nominal input voltage:: 230 VAC

Input voltage range: 90 - 280 VAC

Output voltage waveform: Pure sine wave

Operating frequency: 60/50 HZ

Efficiency: 90 % ~ 93%

Protections:: Short-circuit Against overheating Against overload Against overcharging

Switching time:: 10 ms (PC) 20 ms (Home devices)

Battery charging voltage: 27 VDC

Connector diameter: M6 - 6 mm

Noise: 45 dB

Operating temperature:: -10˚C to +50˚C

Housing color: Green, black

Additional information: Possibility to connect an additional Wi-Fi module

Dimensions (D/D x W) x H): 100 x 300 x 450 mm

Weight: 9.5 kg
