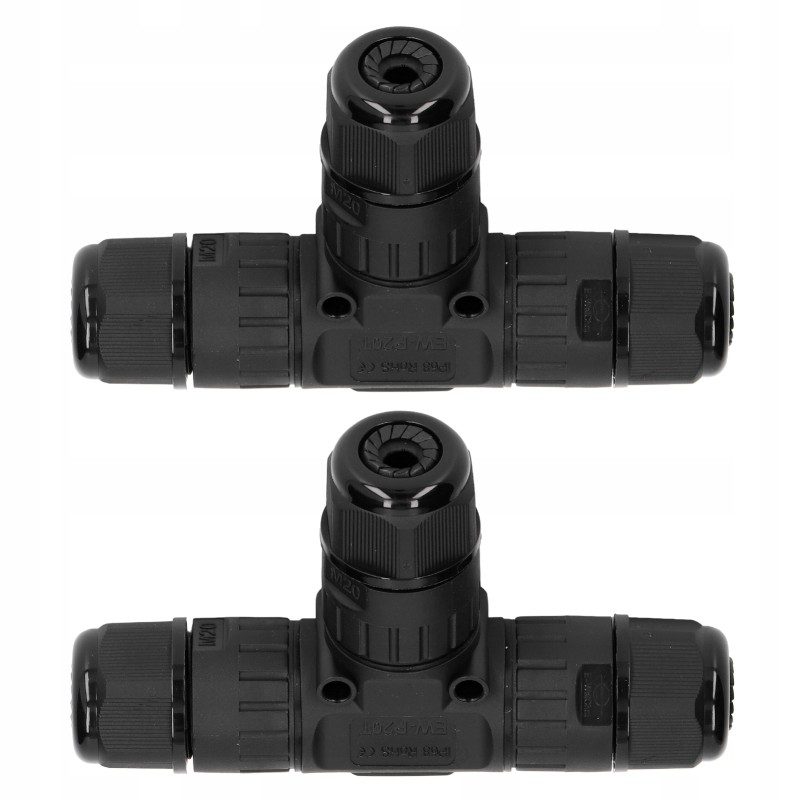

2pcs t type junction box connector

Feature:1. [IP68 Waterproof] The tee junction box connector is made of PA66, brass and silicone, which is waterproof, dustproof and durable to use according to IP68.

2. [brass contact] Adopt brass contact parts, good electrical conductivity, hard card wire, more convenient wire management to meet different needs,

3. [High efficiency] Crimp wiring design, one pull, one plug and one press to quickly complete the wiring in three simple steps, and the wiring installation efficiency is high.

4. [Strong tensile force] The junction box connector saves time and is convenient to install with a clamp head. The cable has a long reach, high tensile force.

5. [Exquisite workmanship] With exquisite workmanship, there are no obvious flying edges, no burrs, cracks or other cosmetic defects.

Specification:Item type: junction box connector

Model: EW-M20T-3P high-speed card

Number of cores: 3pcs

Mount type: Clamp mount

Installation type: AC DC

Black color

Wiring diameter: 9-12mm/0.35-0.47in

Product size: approx. 10 x 6.5 x 2.3cm / 3, 9 x 2.6 x 0.9 inch

Rubber plug diameter (inner diameter): approx. 11.5 mm / 0.5 inch

Material: PA66, brass, silicone

Waterproof rating: IP68

Fireproof class : UL94-V2

Performance parameters:

Rated voltage/current: 450V/16A

Withstand voltage: 1000V

Wire specifications: 0.5m㎡-2.5m㎡

Operating temperature: -40 ~ +105℃

Application scenarios: Mainly used for outdoor waterproof equipment, street lighting, buried lighting, garden lighting, outdoor lighting

Application: Outdoor LED power connections

Application area: lighting electronics

Weight: approx. 124 g / 4.4oz

Package List: 2 x Junction Box Connector
