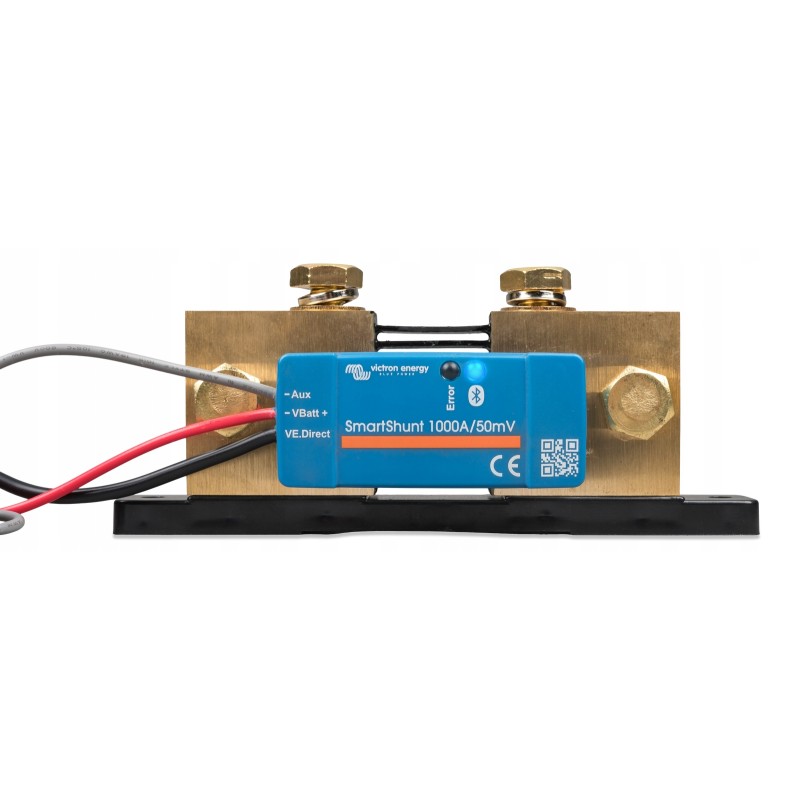

Victron Energy Smartshunt 1000a 50mv ip65 intelligent battery shunt

Victron Energy SmartShunt 1000A / 50mV IP65 Smart Battery Shunt The SmartShunt is a one-piece battery monitor, but without a display. Your mobile phone acts as the display. SmartShunt connects via Bluetooth to the VictronConnect application on your phone (or tablet), so you can conveniently read all monitored battery parameters, i.e. charge status, remaining operating time, historical data, and more.

SmartShunt can also be connected to the device GX, which can also be read. The SmartShunt connection is made with a VE.Direct cable.

SmartShunt is a good alternative to the BMV battery monitor, especially in systems where battery monitoring is necessary, but excessive cables would create unnecessary clutter.

SmartShunt is equipped with a Bluetooth system, VE.Direct port and a socket that can be used to: monitor a second battery, monitor an intermediate point or connect a temperature sensor.

IP65 housing:

protection against touching parts not protected by wire and full dustproof protection

protection against a stream of water with an intensity of 12.5 l/min pouring on each side

Technical data:

Supply voltage range: 6.5 - 70V DC

Current consumption: <, 1mA

Supply voltage range - second battery: 6.5 - 95V DC

Battery capacity: 1 - 9999Ah

Temperature range operation: -40 +50°C

Temperature measurement range: -20 +50°C

VE.Direct communication port: Yes

Dimensions: 46 x 120 x 54mm

Protection level: IP65

Accuracy:

Current : ± 0.01A

Voltage: ± 0.01V

Amp-hours: ± 0.01Ah

Charge status (0 - 100%): ± 0.1%

Time-to-go: ± 1min

Temperature (with optional temperature sensor connected): ± 1°C

Current measurement accuracy: ± 0.4%

Voltage measurement accuracy: ± 0.3%

Offset: less than 20 / 40 / 80 mA
